Synthetic data generation

Generation for synthetic datasets.

qim3d.generate.ParameterVisualizer

Interactive Jupyter widget for exploring synthetic data generation parameters.

Provides a Graphical User Interface (GUI) to tune the parameters of qim3d.generate.volume in real-time. Users can adjust sliders for noise scale, threshold, and gamma while immediately seeing the resulting 3D structure.

Parameters:

Name	Type	Description	Default
base_shape	tuple	Determines the shape of the generate volume. This will not be updated when exploring parameters and must be determined when generating the visualizer.	(128, 128, 128)
final_shape	tuple	Desired shape of the final volume. If unspecified, will assume same shape as base_shape.	None
seed	int	Determines the seed for the volume generation. Enables the user to generate different volumes with the same parameters.	0
hollow	int	Determines thickness of the hollowing operation. Volume is only hollowed if hollow>0.	0
initial_config	dict	Dictionary that defines the starting parameters of the visualizer. Can be used if a specific setup is needed. The dictionary may contain the keywords: noise_type, noise_scale, decay_rate, gamma, threshold, shape and tube_hole_ratio.	None
nsmin	float	Determines minimum value for the noise scale slider.	0.0
nsmax	float	Determines maximum value for the noise scale slider.	0.1
dsmin	float	Determines minimum value for the decay rate slider.	0.1
dsmax	float	Determines maximum value for the decay rate slider.	20.0
gsmin	float	Determines minimum value for the gamma slider.	0.1
gsmax	float	Determines maximum value for the gamma slider.	2.0
tsmin	float	Determines minimum value for the threshold slider.	0.0
tsmax	float	Determines maximum value for the threshold slider.	1.0
grid_visible	bool	Determines if the grid should be visible upon plot generation.	False

Raises:

Type	Description
ValueError	If either base_shape, noise slider, decay slider, gamma slider, or threshold slider are invalid.

Example

import qim3d

viz = qim3d.generate.ParameterVisualizer()

Accessing the current volume

The most recently generated 3D volume can be retrieved at any time using the .get_volume() method:

vol = viz.get_volume()

This returns the synthetic volume as a NumPy ndarray corresponding to the current widget parameters.

Source code in qim3d/generate/_generators.py

class ParameterVisualizer:
    """
    Interactive Jupyter widget for exploring synthetic data generation parameters.

    Provides a Graphical User Interface (GUI) to tune the parameters of `qim3d.generate.volume`
    in real-time. Users can adjust sliders for noise scale, threshold, and gamma while immediately
    seeing the resulting 3D structure.

    Args:
        base_shape (tuple, optional): Determines the shape of the generate volume. This will not be updated when exploring parameters and must be determined when generating the visualizer.
        final_shape (tuple, optional): Desired shape of the final volume. If unspecified, will assume same shape as base_shape.
        seed (int, optional): Determines the seed for the volume generation. Enables the user to generate different volumes with the same parameters.
        hollow (int, optional): Determines thickness of the hollowing operation. Volume is only hollowed if hollow>0.
        initial_config (dict, optional): Dictionary that defines the starting parameters of the visualizer. Can be used if a specific setup is needed. The dictionary may contain the keywords: `noise_type`, `noise_scale`, `decay_rate`, `gamma`, `threshold`, `shape` and `tube_hole_ratio`.
        nsmin (float, optional): Determines minimum value for the noise scale slider.
        nsmax (float, optional): Determines maximum value for the noise scale slider.
        dsmin (float, optional): Determines minimum value for the decay rate slider.
        dsmax (float, optional): Determines maximum value for the decay rate slider.
        gsmin (float, optional): Determines minimum value for the gamma slider.
        gsmax (float, optional): Determines maximum value for the gamma slider.
        tsmin (float, optional): Determines minimum value for the threshold slider.
        tsmax (float, optional): Determines maximum value for the threshold slider.
        grid_visible (bool, optional): Determines if the grid should be visible upon plot generation.

    Raises:
        ValueError: If either `base_shape`, `noise slider`, `decay slider`, `gamma slider`, or `threshold slider` are invalid.

    Example:
        ```python
        import qim3d

        viz = qim3d.generate.ParameterVisualizer()
        ```

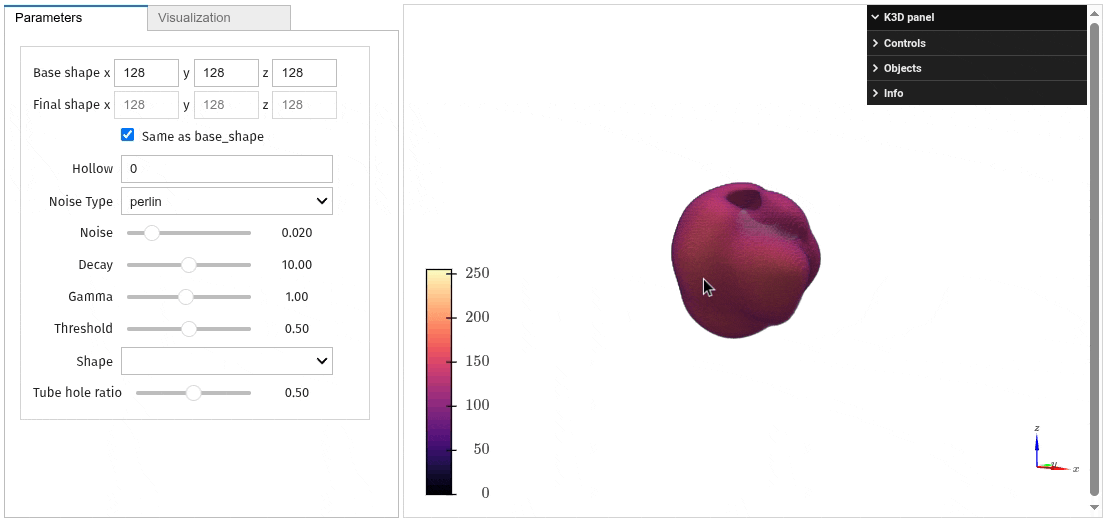

        ![paramter_visualizer](../../assets/screenshots/viz-synthetic_parameters.gif)

    Accessing the current volume:
            The most recently generated 3D volume can be retrieved at any time using the `.get_volume()` method:

            ```python
            vol = viz.get_volume()
            ```
            This returns the synthetic volume as a NumPy ndarray corresponding to the current widget parameters.

    """

    def __init__(
        self,
        base_shape: tuple = (128, 128, 128),
        final_shape: tuple = None,
        seed: int = 0,
        hollow: int = 0,
        initial_config: dict = None,
        nsmin: float = 0.0,
        nsmax: float = 0.1,
        dsmin: float = 0.1,
        dsmax: float = 20.0,
        gsmin: float = 0.1,
        gsmax: float = 2.0,
        tsmin: float = 0.0,
        tsmax: float = 1.0,
        grid_visible: bool = False,
    ):
        # Error checking:
        if not isinstance(base_shape, tuple) or len(base_shape) != 3:
            err = 'base_shape should be a tuple of three sizes.'
            raise ValueError(err)

        if final_shape is not None:
            if not isinstance(final_shape, tuple) or len(final_shape) != 3:
                err = 'final_shape should be a tuple of three sizes or None.'
                raise ValueError(err)

        if hollow < 0 or isinstance(hollow, float):
            err = 'Argument "hollow" should be 0 or a positive integer'
            raise ValueError(err)

        if nsmin > nsmax:
            err = f'Minimum slider value for noise must be less than or equal to the maximum. Given: min = {nsmin}, max = {nsmax}.'
            raise ValueError(err)

        if dsmin > dsmax:
            err = f'Minimum decay rate value must be less than or equal to the maximum. Given: min = {dsmin}, max = {dsmax}.'
            raise ValueError(err)

        if gsmin > gsmax:
            err = f'Minimum gamma value must be less than or equal to the maximum. Given: min = {gsmin}, max = {gsmax}.'
            raise ValueError(err)

        if tsmin > tsmax:
            err = f'Minimum threshold value must be less than or equal to the maximum. Given: min = {tsmin}, max = {tsmax}.'
            raise ValueError(err)

        self.base_shape = base_shape
        self.final_shape = final_shape
        self.hollow = hollow
        self.seed = int(seed)
        self.axis = 0  # Not customizable
        self.max_value = 255  # Not customizable

        # Min and max values for sliders
        self.nsmin = nsmin
        self.nsmax = nsmax
        self.dsmin = dsmin
        self.dsmax = dsmax
        self.gsmin = gsmin
        self.gsmax = gsmax
        self.tsmin = tsmin
        self.tsmax = tsmax

        self.grid_visible = grid_visible
        self.config = {
            'noise_scale': 0.02,
            'decay_rate': 10,
            'gamma': 1.0,
            'threshold': 0.5,
            'tube_hole_ratio': 0.5,
            'shape': None,
            'noise_type': 'perlin',
        }
        if initial_config:
            self.config.update(initial_config)

        self.state = {}
        self._build_widgets()
        self._setup_plot()
        self._display_ui()

    def _compute_volume(self) -> None:
        vol = volume(
            base_shape=self.base_shape,
            final_shape=self.final_shape,
            noise_type=self.config['noise_type'],
            noise_scale=self.config['noise_scale'],
            decay_rate=self.config['decay_rate'],
            gamma=self.config['gamma'],
            threshold=self.config['threshold'],
            shape=self.config['shape'],
            tube_hole_ratio=self.config['tube_hole_ratio'],
            seed=self.seed,
            hollow=self.hollow,
        )
        return scale_to_float16(vol)

    def _build_widgets(self) -> None:
        # Widgets
        self.noise_slider = widgets.FloatSlider(
            value=self.config['noise_scale'],
            min=self.nsmin,
            max=self.nsmax,
            step=0.001,
            description='Noise',
            readout_format='.3f',
            continuous_update=False,
        )
        self.decay_slider = widgets.FloatSlider(
            value=self.config['decay_rate'],
            min=self.dsmin,
            max=self.dsmax,
            step=0.1,
            description='Decay',
            continuous_update=False,
        )
        self.gamma_slider = widgets.FloatSlider(
            value=self.config['gamma'],
            min=self.gsmin,
            max=self.gsmax,
            step=0.1,
            description='Gamma',
            continuous_update=False,
        )
        self.threshold_slider = widgets.FloatSlider(
            value=self.config['threshold'],
            min=self.tsmin,
            max=self.tsmax,
            step=0.05,
            description='Threshold',
            continuous_update=False,
        )
        self.noise_type_dropdown = widgets.Dropdown(
            options=['perlin', 'simplex'], value='perlin', description='Noise Type'
        )
        self.shape_dropdown = widgets.Dropdown(
            options=[None, 'cylinder', 'tube'], value=None, description='Shape'
        )
        self.tube_hole_ratio_slider = widgets.FloatSlider(
            value=self.config['tube_hole_ratio'],
            min=0.0,
            max=1.0,
            step=0.05,
            description='Tube hole ratio',
            style={'description_width': 'initial'},
            continuous_update=False,
        )
        self.base_shape_x_text = widgets.IntText(
            value=self.base_shape[0],
        )
        self.base_shape_y_text = widgets.IntText(
            value=self.base_shape[1],
        )
        self.base_shape_z_text = widgets.IntText(
            value=self.base_shape[2],
        )
        self.final_same_as_base_checkbox = widgets.Checkbox(
            value=True, description='Same as base_shape'
        )
        self.final_shape_x_text = widgets.IntText(
            value=self.base_shape[0],
        )
        self.final_shape_y_text = widgets.IntText(
            value=self.base_shape[1],
        )
        self.final_shape_z_text = widgets.IntText(
            value=self.base_shape[2],
        )
        self.hollow_text = widgets.BoundedIntText(
            value=self.hollow,
            min=0,
            max=1000,  # chosen arbitrarily atm.
            step=1,
            description='Hollow',
        )
        self.colormap_dropdown = widgets.Dropdown(
            options=['magma', 'viridis', 'gray', 'plasma'],
            value='magma',
            description='Colormap',
        )
        self.grid_checkbox = widgets.Checkbox(
            value=self.grid_visible, description='Show grid'
        )

        # Observers
        self.noise_slider.observe(self._on_change, names='value')
        self.noise_type_dropdown.observe(self._on_change, names='value')
        self.decay_slider.observe(self._on_change, names='value')
        self.gamma_slider.observe(self._on_change, names='value')
        self.threshold_slider.observe(self._on_change, names='value')
        self.shape_dropdown.observe(self._on_change, names='value')
        self.tube_hole_ratio_slider.observe(self._on_change, names='value')
        self.base_shape_x_text.observe(self._on_change, names='value')
        self.base_shape_y_text.observe(self._on_change, names='value')
        self.base_shape_z_text.observe(self._on_change, names='value')
        self.final_shape_x_text.observe(self._on_change, names='value')
        self.final_shape_y_text.observe(self._on_change, names='value')
        self.final_shape_z_text.observe(self._on_change, names='value')
        self.hollow_text.observe(self._on_change, names='value')
        self.colormap_dropdown.observe(self._on_change, names='value')
        self.grid_checkbox.observe(self._on_change, names='value')
        self.final_same_as_base_checkbox.observe(
            self._on_checkbox_change, names='value'
        )
        self.final_same_as_base_checkbox.observe(self._on_change, names='value')
        # Initial state
        self._on_checkbox_change({'new': self.final_same_as_base_checkbox.value})

    def _on_checkbox_change(self, change) -> None:
        disabled = change['new']
        self.final_shape_x_text.disabled = disabled
        self.final_shape_y_text.disabled = disabled
        self.final_shape_z_text.disabled = disabled

    def _get_base_shape(self) -> tuple:
        # Check valid axes
        for axis in [
            self.base_shape_x_text,
            self.base_shape_y_text,
            self.base_shape_z_text,
        ]:
            if axis.value < 1:
                axis.value = 1
        return (
            self.base_shape_x_text.value,
            self.base_shape_y_text.value,
            self.base_shape_z_text.value,
        )

    def _get_final_shape(self) -> tuple:
        if self.final_same_as_base_checkbox.value:
            return None
        else:
            return (
                self.final_shape_x_text.value,
                self.final_shape_y_text.value,
                self.final_shape_z_text.value,
            )

    def _setup_plot(self) -> None:
        vol = self._compute_volume()

        cmap = plt.get_cmap(self.colormap_dropdown.value)
        attr_vals = np.linspace(0.0, 1.0, num=cmap.N)
        rgb_vals = cmap(np.arange(0, cmap.N))[:, :3]
        color_map = np.column_stack((attr_vals, rgb_vals)).tolist()

        pixel_count = np.prod(vol.shape)
        y1, x1 = 256, 16777216  # 256 samples at res 256*256*256=16.777.216
        y2, x2 = 32, 134217728  # 32 samples at res 512*512*512=134.217.728
        a = (y1 - y2) / (x1 - x2)
        b = y1 - a * x1
        samples = int(min(max(a * pixel_count + b, 64), 512))

        self.plot = k3d.plot(grid_visible=self.grid_visible)
        self.plt_volume = k3d.volume(
            vol,
            bounds=[0, vol.shape[0], 0, vol.shape[1], 0, vol.shape[2]],
            color_map=color_map,
            samples=samples,
            color_range=[np.min(vol), np.max(vol)],
            opacity_function=[],
            interpolation=True,
        )
        self.plot += self.plt_volume

    def _on_change(self, change: None = None) -> None:
        self.config['noise_type'] = self.noise_type_dropdown.value
        self.config['noise_scale'] = self.noise_slider.value
        self.config['decay_rate'] = self.decay_slider.value
        self.config['gamma'] = self.gamma_slider.value
        self.config['threshold'] = self.threshold_slider.value
        self.config['shape'] = self.shape_dropdown.value
        self.config['tube_hole_ratio'] = self.tube_hole_ratio_slider.value
        self.base_shape = self._get_base_shape()
        self.final_shape = self._get_final_shape()
        self.hollow = self.hollow_text.value

        # Update colormap
        cmap = plt.get_cmap(self.colormap_dropdown.value)
        attr_vals = np.linspace(0.0, 1.0, num=cmap.N)
        rgb_vals = cmap(np.arange(0, cmap.N))[:, :3]
        color_map = np.column_stack((attr_vals, rgb_vals)).tolist()
        self.plt_volume.color_map = color_map

        # Update grid
        self.plot.grid_visible = self.grid_checkbox.value

        # Recompute volume
        new_vol = self._compute_volume()

        # Recompute samples based on the new shape (same logic as in _setup_plot)
        pixel_count = int(np.prod(new_vol.shape))
        y1, x1 = 256, 16777216  # 256 samples at 256^3
        y2, x2 = 32, 134217728  # 32 samples  at 512^3
        a = (y1 - y2) / (x1 - x2)
        b = y1 - a * x1
        samples = int(min(max(a * pixel_count + b, 64), 512))

        # If the shape changed, rebuild the K3D volume actor (needed for K3D)
        if new_vol.shape != self.plt_volume.volume.shape:
            # Remove old actor
            self.plot -= self.plt_volume

            # Build fresh actor with updated bounds/color_range/samples
            self.plt_volume = k3d.volume(
                new_vol,
                bounds=[0, new_vol.shape[0], 0, new_vol.shape[1], 0, new_vol.shape[2]],
                color_map=color_map,
                samples=samples,
                color_range=[float(np.min(new_vol)), float(np.max(new_vol))],
                opacity_function=[],
                interpolation=True,
            )
            self.plot += self.plt_volume
        else:
            # Same shape: just update data AND color_range
            self.plt_volume.volume = new_vol
            self.plt_volume.color_range = [
                float(np.min(new_vol)),
                float(np.max(new_vol)),
            ]

    def _display_ui(self) -> None:
        small_box = widgets.Layout(width='65px')
        for box in [
            self.base_shape_x_text,
            self.base_shape_y_text,
            self.base_shape_z_text,
            self.final_shape_x_text,
            self.final_shape_y_text,
            self.final_shape_z_text,
        ]:
            box.layout = small_box

        self.base_shape_box = widgets.HBox(
            [
                widgets.Label('Base shape  '),
                widgets.Label('x'),
                self.base_shape_x_text,
                widgets.Label('y'),
                self.base_shape_y_text,
                widgets.Label('z'),
                self.base_shape_z_text,
            ]
        )
        self.final_shape_box = widgets.HBox(
            [
                widgets.Label('Final shape  '),
                widgets.Label('x'),
                self.final_shape_x_text,
                widgets.Label('y'),
                self.final_shape_y_text,
                widgets.Label('z'),
                self.final_shape_z_text,
            ]
        )

        parameters_controls = widgets.VBox(
            [
                self.base_shape_box,
                self.final_shape_box,
                self.final_same_as_base_checkbox,
                self.hollow_text,
                self.noise_type_dropdown,
                self.noise_slider,
                self.decay_slider,
                self.gamma_slider,
                self.threshold_slider,
                self.shape_dropdown,
                self.tube_hole_ratio_slider,
            ]
        )

        # Controls styling
        parameters_controls.layout = widgets.Layout(
            display='flex',
            flex_flow='column',
            flex='0 1',
            min_width='350px',  # Ensure it doesn't get too small
            height='auto',
            overflow_y='auto',
            border='1px solid lightgray',
            padding='10px',
            margin='0 1em 0 0',
        )

        visualization_controls = widgets.VBox(
            [self.colormap_dropdown, self.grid_checkbox]
        )

        visualization_controls.layout = widgets.Layout(
            display='flex',
            flex_flow='column',
            flex='0 1',
            min_width='350px',  # Ensure it doesn't get too small
            height='auto',
            overflow_y='auto',
            border='1px solid lightgray',
            padding='10px',
            margin='0 1em 0 0',
        )

        tabs = widgets.Tab(children=[parameters_controls, visualization_controls])
        tabs.set_title(0, 'Parameters')
        tabs.set_title(1, 'Visualization')

        plot_output = widgets.Output()
        plot_output.layout = widgets.Layout(
            flex='1 1 auto',
            height='auto',
            border='1px solid lightgray',
            overflow='auto',
            min_width='500px',
        )
        with plot_output:
            display(self.plot)

        ui = widgets.HBox(
            [tabs, plot_output],
            layout=widgets.Layout(
                width='100%', display='flex', flex_flow='row', align_items='stretch'
            ),
        )

        display(ui)

    def get_volume(self):
        """
        Extracts the generated volume from the widget's current state.

        Allows you to retrieve the numpy array resulting from your interactive adjustments
        so you can use it in your pipeline (e.g., saving it or using it for training).

        Returns:
            vol (numpy.ndarray): The 3D volume currently visualized in the widget.

        Example:
            ```python
            # After adjusting sliders in the widget:
            my_custom_blob = viz.get_volume()
            qim3d.io.save("custom_blob.tif", my_custom_blob)
            ```
        """
        return self.plt_volume.volume

qim3d.generate.ParameterVisualizer.get_volume

get_volume()

Extracts the generated volume from the widget's current state.

Allows you to retrieve the numpy array resulting from your interactive adjustments so you can use it in your pipeline (e.g., saving it or using it for training).

Returns:

Name	Type	Description
vol	ndarray	The 3D volume currently visualized in the widget.

Example

# After adjusting sliders in the widget:
my_custom_blob = viz.get_volume()
qim3d.io.save("custom_blob.tif", my_custom_blob)

Source code in qim3d/generate/_generators.py

def get_volume(self):
    """
    Extracts the generated volume from the widget's current state.

    Allows you to retrieve the numpy array resulting from your interactive adjustments
    so you can use it in your pipeline (e.g., saving it or using it for training).

    Returns:
        vol (numpy.ndarray): The 3D volume currently visualized in the widget.

    Example:
        ```python
        # After adjusting sliders in the widget:
        my_custom_blob = viz.get_volume()
        qim3d.io.save("custom_blob.tif", my_custom_blob)
        ```
    """
    return self.plt_volume.volume

qim3d.generate.volume

volume(
    base_shape=(128, 128, 128),
    final_shape=None,
    noise_scale=0.02,
    noise_type='perlin',
    decay_rate=10,
    gamma=1,
    threshold=0.5,
    max_value=255,
    shape=None,
    tube_hole_ratio=0.5,
    axis=0,
    order=1,
    dtype='uint8',
    hollow=0,
    seed=0,
)

Generates a synthetic 3D volume using structured Perlin noise.

Creates valid 3D morphological structures that resemble biological or material samples (e.g., cells, tissues, pores). By default, it generates a "blob-like" object, but it can also create specific geometric shapes like cylinders or tubes.

This function is ideal for:

• Benchmarking: Creating standard inputs for testing algorithms.
• Augmentation: Generating synthetic samples to train deep learning models.
• Simulation: Modeling physical structures with controlled noise properties.

Supported Shapes:

• Blob: (Default) amorphous, organic-looking structure.
• Cylinder: A solid cylindrical rod.
• Tube: A hollow cylinder.

Parameters:

Name	Type	Description	Default
base_shape	tuple	The resolution of the internal noise grid. Higher values create finer details but require more computation.	(128, 128, 128)
final_shape	tuple	The final output resolution. If None, matches base_shape. Use this to upsample the generated volume.	None
noise_scale	float	Controls the "zoom" of the noise texture. Smaller values = smooth, large features. Larger values = rough, high-frequency details.	0.02
noise_type	str	The noise algorithm: perlin (standard) or simplex (faster, different artifacts).	'perlin'
decay_rate	float	Controls how quickly the object fades into the background at the edges. Higher values create sharper, distinct boundaries.	10
gamma	float	Adjusts contrast. <1 flattens values (fuzzier), >1 pushes values to extremes (binary-like).	1
threshold	float	The cut-off value (0.0 to 1.0) defining the object's surface. Lower values make the object larger/fatter; higher values make it smaller/thinner.	0.5
max_value	float	The maximum intensity value in the output array (e.g., 255 for 8-bit images).	255
shape	str	Forces the volume into a geometric shape: None (Blob), cylinder, or tube.	None
tube_hole_ratio	float	Only for tube. Defines the relative thickness of the wall. 0.1 is a thick wall, 0.9 is a thin shell.	0.5
axis	int	The orientation axis (0, 1, or 2) for cylinders and tubes.	0
order	int	Interpolation order when resizing to final_shape (0=Nearest, 1=Linear, etc.).	1
dtype	str	Output data type (e.g., uint8, float32).	'uint8'
hollow	int	If > 0, hollows out the blob by eroding the center, creating a shell of thickness hollow.	0
seed	int	Random seed for reproducibility.	0

Returns:

Name	Type	Description
vol	ndarray	The generated 3D volume.

Raises:

Type	Description
ValueError	If shape or noise_type is invalid.
TypeError	If either base_shape or final_shape is not a tuple or does not have three elements.
TypeError	If dtype is not a valid numpy number type.
ValueError	If hollow is not 0 or a positive integer.

Example

Example:

import qim3d

# Generate synthetic blob
vol = qim3d.generate.volume(noise_scale = 0.02)

# Visualize 3D volume
qim3d.viz.volumetric(vol)

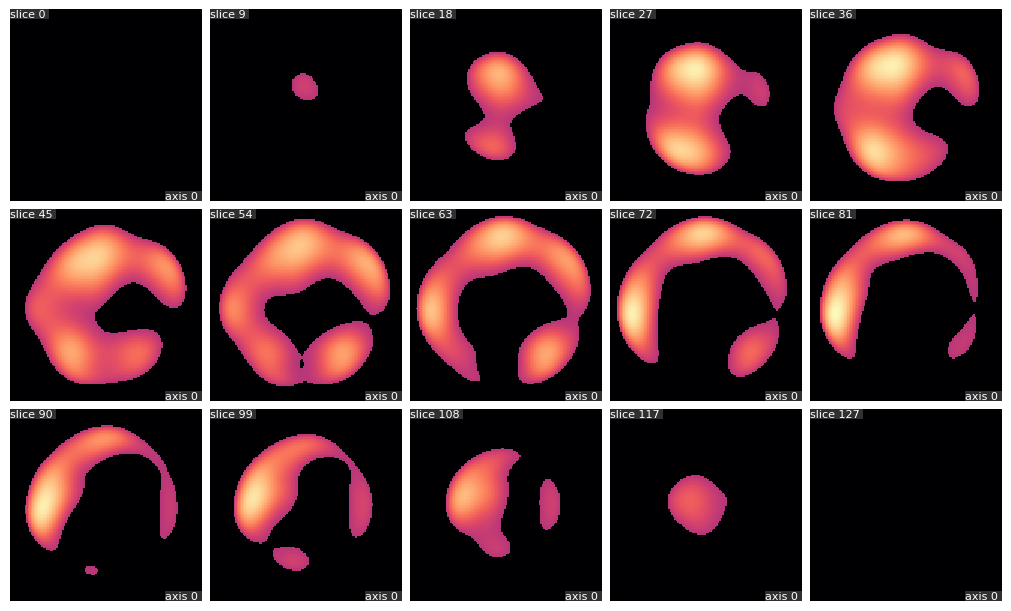

# Visualize slices
qim3d.viz.slices_grid(vol, value_min = 0, value_max = 255, num_slices = 15)

Example

import qim3d

# Generate tubular synthetic blob
vol = qim3d.generate.volume(base_shape = (200, 100, 100),
                            final_shape = (400,100,100),
                            noise_scale = 0.03,
                            threshold = 0.85,
                            decay_rate=20,
                            gamma=0.15,
                            shape = "tube",
                            tube_hole_ratio = 0.4,
                            )

# Visualize synthetic volume
qim3d.viz.volumetric(vol)

# Visualize slices
qim3d.viz.slices_grid(vol, num_slices=15, slice_axis=1)

Example

import qim3d

# Generate tubular synthetic blob
vol = qim3d.generate.volume(base_shape = (200, 100, 100),
                        final_shape = (400, 100, 100),
                        noise_scale = 0.03,
                        gamma = 0.12,
                        threshold = 0.85,
                        shape = "tube",
                        )

# Visualize synthetic blob
qim3d.viz.volumetric(vol)

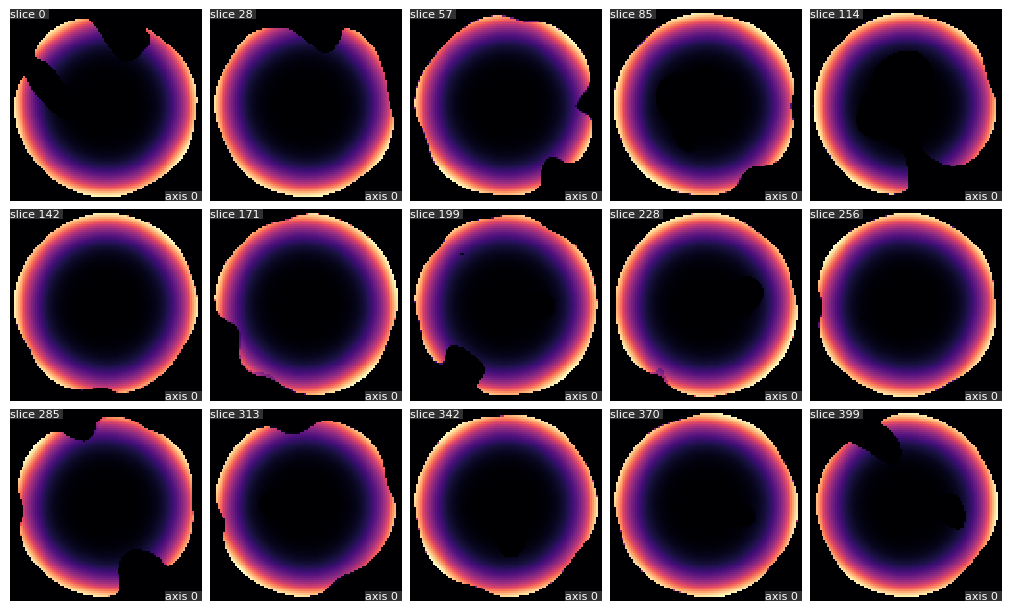

# Visualize
qim3d.viz.slices_grid(vol, num_slices=15)

Source code in qim3d/generate/_generators.py

def volume(
    base_shape: tuple = (128, 128, 128),
    final_shape: tuple = None,
    noise_scale: float = 0.02,
    noise_type: str = 'perlin',
    decay_rate: float = 10,
    gamma: float = 1,
    threshold: float = 0.5,
    max_value: float = 255,
    shape: str = None,
    tube_hole_ratio: float = 0.5,
    axis: int = 0,
    order: int = 1,
    dtype: str = 'uint8',
    hollow: int = 0,
    seed: int = 0,
) -> np.ndarray:
    """
    Generates a synthetic 3D volume using structured Perlin noise.

    Creates valid 3D morphological structures that resemble biological or material samples
    (e.g., cells, tissues, pores). By default, it generates a "blob-like" object, but it can
    also create specific geometric shapes like **cylinders** or **tubes**.

    This function is ideal for:

    * **Benchmarking:** Creating standard inputs for testing algorithms.
    * **Augmentation:** Generating synthetic samples to train deep learning models.
    * **Simulation:** Modeling physical structures with controlled noise properties.

    **Supported Shapes:**

    * **Blob:** (Default) amorphous, organic-looking structure.
    * **Cylinder:** A solid cylindrical rod.
    * **Tube:** A hollow cylinder.

    Args:
        base_shape (tuple, optional):
            The resolution of the internal noise grid. Higher values create finer details
            but require more computation.
        final_shape (tuple, optional):
            The final output resolution. If `None`, matches `base_shape`.
            Use this to upsample the generated volume.
        noise_scale (float, optional):
            Controls the "zoom" of the noise texture. Smaller values = smooth, large features.
            Larger values = rough, high-frequency details.
        noise_type (str, optional):
            The noise algorithm: `perlin` (standard) or `simplex` (faster, different artifacts).
        decay_rate (float, optional):
            Controls how quickly the object fades into the background at the edges.
            Higher values create sharper, distinct boundaries.
        gamma (float, optional):
            Adjusts contrast. `<1` flattens values (fuzzier), `>1` pushes values to extremes (binary-like).
        threshold (float, optional):
            The cut-off value (0.0 to 1.0) defining the object's surface.
            Lower values make the object larger/fatter; higher values make it smaller/thinner.
        max_value (float, optional):
            The maximum intensity value in the output array (e.g., 255 for 8-bit images).
        shape (str, optional):
            Forces the volume into a geometric shape: `None` (Blob), `cylinder`, or `tube`.
        tube_hole_ratio (float, optional):
            Only for `tube`. Defines the relative thickness of the wall.
            `0.1` is a thick wall, `0.9` is a thin shell.
        axis (int, optional):
            The orientation axis (0, 1, or 2) for cylinders and tubes.
        order (int, optional):
            Interpolation order when resizing to `final_shape` (0=Nearest, 1=Linear, etc.).
        dtype (str, optional):
            Output data type (e.g., `uint8`, `float32`).
        hollow (int, optional):
            If > 0, hollows out the blob by eroding the center, creating a shell of thickness `hollow`.
        seed (int, optional):
            Random seed for reproducibility.

    Returns:
        vol (numpy.ndarray):
            The generated 3D volume.

    Raises:
        ValueError: If `shape` or `noise_type` is invalid.
        TypeError: If either `base_shape` or `final_shape` is not a tuple or does not have three elements.
        TypeError: If `dtype` is not a valid numpy number type.
        ValueError: If `hollow` is not 0 or a positive integer.

    Example:
        Example:
        ```python
        import qim3d

        # Generate synthetic blob
        vol = qim3d.generate.volume(noise_scale = 0.02)

        # Visualize 3D volume
        qim3d.viz.volumetric(vol)
        ```
        <iframe src="https://platform.qim.dk/k3d/synthetic_blob_1.html" width="100%" height="500" frameborder="0"></iframe>

        ```python
        # Visualize slices
        qim3d.viz.slices_grid(vol, value_min = 0, value_max = 255, num_slices = 15)
        ```
        ![synthetic_blob](../../assets/screenshots/synthetic_blob_slices.png)

    Example:
        ```python
        import qim3d

        # Generate tubular synthetic blob
        vol = qim3d.generate.volume(base_shape = (200, 100, 100),
                                    final_shape = (400,100,100),
                                    noise_scale = 0.03,
                                    threshold = 0.85,
                                    decay_rate=20,
                                    gamma=0.15,
                                    shape = "tube",
                                    tube_hole_ratio = 0.4,
                                    )

        # Visualize synthetic volume
        qim3d.viz.volumetric(vol)
        ```
        <iframe src="https://platform.qim.dk/k3d/synthetic_blob_cylinder_1.html" width="100%" height="500" frameborder="0"></iframe>

        ```python

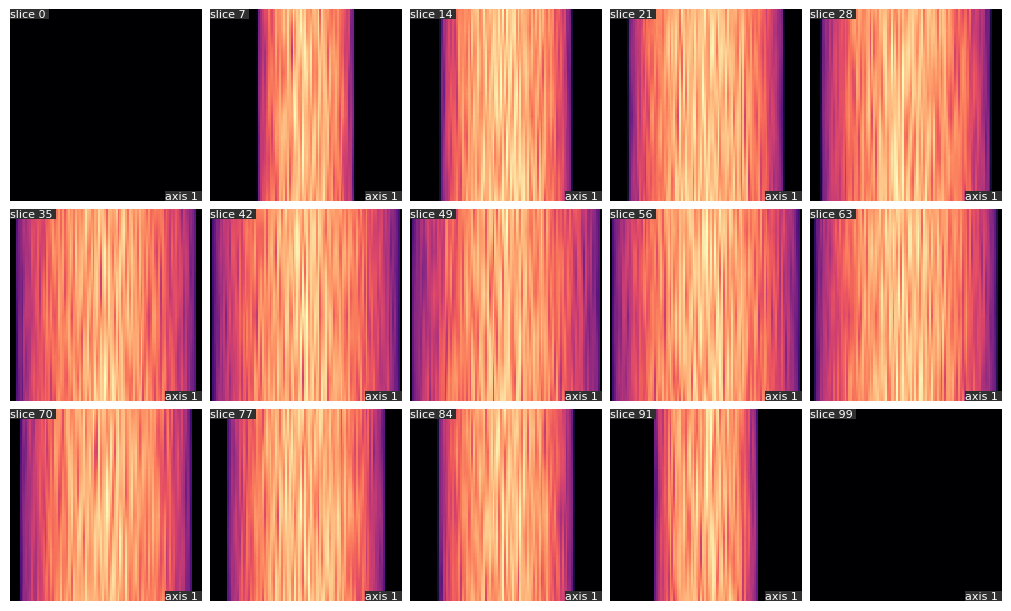

        # Visualize slices
        qim3d.viz.slices_grid(vol, num_slices=15, slice_axis=1)
        ```
        ![synthetic_blob_cylinder_slice](../../assets/screenshots/synthetic_blob_cylinder_slice.png)

    Example:
        ```python
        import qim3d

        # Generate tubular synthetic blob
        vol = qim3d.generate.volume(base_shape = (200, 100, 100),
                                final_shape = (400, 100, 100),
                                noise_scale = 0.03,
                                gamma = 0.12,
                                threshold = 0.85,
                                shape = "tube",
                                )

        # Visualize synthetic blob
        qim3d.viz.volumetric(vol)
        ```
        <iframe src="https://platform.qim.dk/k3d/synthetic_blob_tube_1.html" width="100%" height="500" frameborder="0"></iframe>

        ```python
        # Visualize
        qim3d.viz.slices_grid(vol, num_slices=15)
        ```
        ![synthetic_blob_tube_slice](../../assets/screenshots/synthetic_blob_tube_slice.png)

    """
    # Control
    shape_types = ['cylinder', 'tube']
    if shape and shape not in shape_types:
        err = f'shape should be one of: {shape_types}'
        raise ValueError(err)
    noise_types = ['pnoise', 'perlin', 'p', 'snoise', 'simplex', 's']
    if noise_type not in noise_types:
        err = f'noise_type should be one of: {noise_types}'
        raise ValueError(err)

    if not isinstance(base_shape, tuple) or len(base_shape) != 3:
        message = 'base_shape must be a tuple with three dimensions (z, y, x)'
        raise TypeError(message)

    if final_shape and (not isinstance(final_shape, tuple) or len(final_shape) != 3):
        message = 'final_shape must be a tuple with three dimensions (z, y, x)'
        raise TypeError(message)

    try:
        d = np.dtype(dtype)
    except TypeError as e:
        err = f'Datatype {dtype} is not a valid dtype.'
        raise TypeError(err) from e

    if hollow < 0 or isinstance(hollow, float):
        err = 'Argument "hollow" should be 0 or a positive integer'
        raise ValueError(err)

    # Generate grid of coordinates
    z, y, x = np.indices(base_shape)

    # Generate noise
    if (
        np.round(noise_scale, 3) == 0
    ):  # Only detect three decimal position (0.001 is ok, but 0.0001 is 0)
        noise_scale = 0

    if noise_scale == 0:
        noise = np.ones(base_shape)
    else:
        if noise_type in noise_types[:3]:
            vectorized_noise = np.vectorize(pnoise3)
            noise = vectorized_noise(
                z.flatten() * noise_scale,
                y.flatten() * noise_scale,
                x.flatten() * noise_scale,
                base=seed,
            ).reshape(base_shape)
        elif noise_type in noise_types[3:]:
            vectorized_noise = np.vectorize(snoise3)
            noise = vectorized_noise(
                z.flatten() * noise_scale,
                y.flatten() * noise_scale,
                x.flatten() * noise_scale,
            ).reshape(base_shape)
        noise = (noise - np.min(noise)) / (np.max(noise) - np.min(noise))

    # Calculate the center of the array
    center = np.array([(s - 1) / 2 for s in base_shape])

    # Calculate the distance of each point from the center
    if not shape:
        distance = np.linalg.norm(
            [
                (z - center[0]) / center[0],
                (y - center[1]) / center[1],
                (x - center[2]) / center[2],
            ],
            axis=0,
        )
        max_distance = np.sqrt(3)
        # Set ratio
        miin = np.max(
            [
                distance[distance.shape[0] // 2, distance.shape[1] // 2, 0],
                distance[distance.shape[0] // 2, 0, distance.shape[2] // 2],
                distance[0, distance.shape[1] // 2, distance.shape[2] // 2],
            ]
        )
        ratio = miin / max_distance  # 0.577

    elif shape == 'cylinder' or shape == 'tube':
        distance_list = np.array(
            [
                (z - center[0]) / center[0],
                (y - center[1]) / center[1],
                (x - center[2]) / center[2],
            ]
        )
        # remove the axis along which the fading is not applied
        distance_list = np.delete(distance_list, axis, axis=0)
        distance = np.linalg.norm(distance_list, axis=0)
        max_distance = np.sqrt(2)
        # Set ratio
        miin = np.max(
            [
                distance[distance.shape[0] // 2, distance.shape[1] // 2, 0],
                distance[distance.shape[0] // 2, 0, distance.shape[2] // 2],
                distance[0, distance.shape[1] // 2, distance.shape[2] // 2],
            ]
        )
        ratio = miin / max_distance  # 0.707

    # Scale the distance such that the shortest distance (from center to any edge) is 1 (prevents clipping)
    scaled_distance = distance / (max_distance * ratio)

    # Apply decay rate
    faded_distance = np.power(scaled_distance, decay_rate)

    # Invert the distances to have 1 at the center and 0 at the edges
    fade_array = 1 - faded_distance
    fade_array[fade_array <= 0] = 0

    # Apply the fading to the volume
    vol_faded = noise * fade_array

    # Normalize the volume
    vol_normalized = vol_faded / np.max(vol_faded)

    # Apply gamma
    generated_vol = np.power(vol_normalized, gamma)

    # Scale to max_value
    generated_vol = generated_vol * max_value

    # Threshold
    generated_vol[generated_vol < threshold * max_value] = 0

    # Apply fade mask for creation of tube
    if shape == 'tube':
        generated_vol = qim3d.operations.fade_mask(
            generated_vol,
            geometry='cylindrical',
            axis=axis,
            ratio=tube_hole_ratio,
            decay_rate=5,
            invert=True,
        )

    # Scale up the volume of volume to size
    if final_shape:
        generated_vol = scipy.ndimage.zoom(
            generated_vol, np.array(final_shape) / np.array(base_shape), order=order
        )

    generated_vol = generated_vol.astype(dtype)

    if hollow > 0:
        generated_vol = qim3d.operations.make_hollow(generated_vol, hollow)

    return generated_vol

qim3d.generate.volume_collection

volume_collection(
    n_volumes=15,
    collection_shape=(200, 200, 200),
    data=None,
    positions=None,
    shape_range=((40, 40, 40), (60, 60, 60)),
    shape_magnification_range=(1.0, 1.0),
    noise_type='perlin',
    noise_range=(0.02, 0.03),
    rotation_degree_range=(0, 360),
    rotation_axes=None,
    gamma_range=(0.9, 1),
    value_range=(128, 255),
    threshold_range=(0.5, 0.55),
    decay_rate_range=(5, 10),
    shape=None,
    tube_hole_ratio=0.5,
    axis=0,
    verbose=False,
    same_seed=False,
    hollow=False,
    seed=0,
    dtype='uint8',
    return_positions=False,
)

Generates a synthetic dataset of multiple non-overlapping volumes with ground truth labels.

This function creates a "collection" volume populated with multiple objects. It uses a collision detection algorithm to ensure objects do not overlap. Crucially, it returns a label mask where each object is identified by a unique integer ID, making this tool ideal for generating training data for Instance Segmentation or Object Detection models.

Objects can be generated synthetically (blobs, cylinders, tubes) with randomized properties, or you can inject your own pre-existing 3D arrays using the data parameter.

Parameters:

Name	Type	Description	Default
n_volumes	int	Target number of volumes/objects to place in the collection.	15
collection_shape	tuple	Dimensions of the final container volume (Z, Y, X).	(200, 200, 200)
data	ndarray or list[ndarray]	Pre-defined 3D volume(s) to place into the collection. If provided, the function picks randomly from this list instead of generating new synthetic blobs. Useful for creating scenes with specific real-world objects.	None
positions	list[tuple]	List of specific (z, y, x) center coordinates for placement. If None, positions are chosen randomly. If provided, n_volumes must match the length of this list.	None
shape_range	tuple[tuple]	Defines the size variance of generated objects. Format: ((min_z, min_y, min_x), (max_z, max_y, max_x)).	((40, 40, 40), (60, 60, 60))
shape_magnification_range	tuple[float]	Range for random uniform scaling factors applied to the object shape.	(1.0, 1.0)
noise_type	str	Algorithm for synthetic texture generation: 'perlin', 'simplex', or 'mixed' (randomly selects per object).	'perlin'
noise_range	tuple[float]	Range for the noise scale parameter (roughness).	(0.02, 0.03)
rotation_degree_range	tuple[int]	Range of rotation angles (in degrees) to apply to each object.	(0, 360)
rotation_axes	list[tuple]	List of axis pairs to rotate around (e.g., [(0, 1)] for XY rotation).	None
gamma_range	tuple[float]	Range for gamma correction (contrast).	(0.9, 1)
value_range	tuple[int]	Range for the maximum intensity value of the objects.	(128, 255)
threshold_range	tuple[float]	Range for the threshold used to define the object surface/size.	(0.5, 0.55)
decay_rate_range	tuple[float]	Range for the edge decay rate (fading at boundaries).	(5, 10)
shape	str	Force a specific geometric shape: 'cylinder', 'tube', or None (organic blob).	None
tube_hole_ratio	float	Ratio of the inner hole if shape='tube'.	0.5
axis	int	Orientation axis (0, 1, 2) if shape is defined.	0
verbose	bool	If True, enables detailed logging of placement attempts.	False
same_seed	bool	If True, reuses the same random seed for every object (they will look identical).	False
hollow	bool	If True, applies a hollowing operation to synthetic objects.	False
seed	int	Global random seed for reproducibility.	0
dtype	str	Data type of the output arrays.	'uint8'
return_positions	bool	If True, the function returns a third element containing the list of successfully placed coordinates.	False

Returns:

Name	Type	Description
volume_collection	ndarray	The 3D volume containing all placed objects.
labels	ndarray	A 3D integer mask of the same shape, where 0 is background and 1..N are the object IDs.
positions	list[tuple]	(Only if return_positions=True) A list of (z, y, x) coordinates for the centers of the placed objects.

Raises:

Type	Description
TypeError	If data is not a numpy array or list of arrays.
ValueError	If data contains non-3D arrays or volumes larger than collection_shape.
ValueError	If ranges or shapes are incorrectly defined.

Example

import qim3d

# Generate synthetic collection of volumes
n_volumes = 15
volume_collection, labels = qim3d.generate.volume_collection(n_volumes=n_volumes)

# Visualize the collection
qim3d.viz.volumetric(volume_collection, grid_visible=True)

qim3d.viz.slicer(volume_collection)

# Visualize labels
cmap = qim3d.viz.colormaps.segmentation(n_labels=n_volumes)
qim3d.viz.slicer(labels, colormap=cmap, max_value=n_volumes)

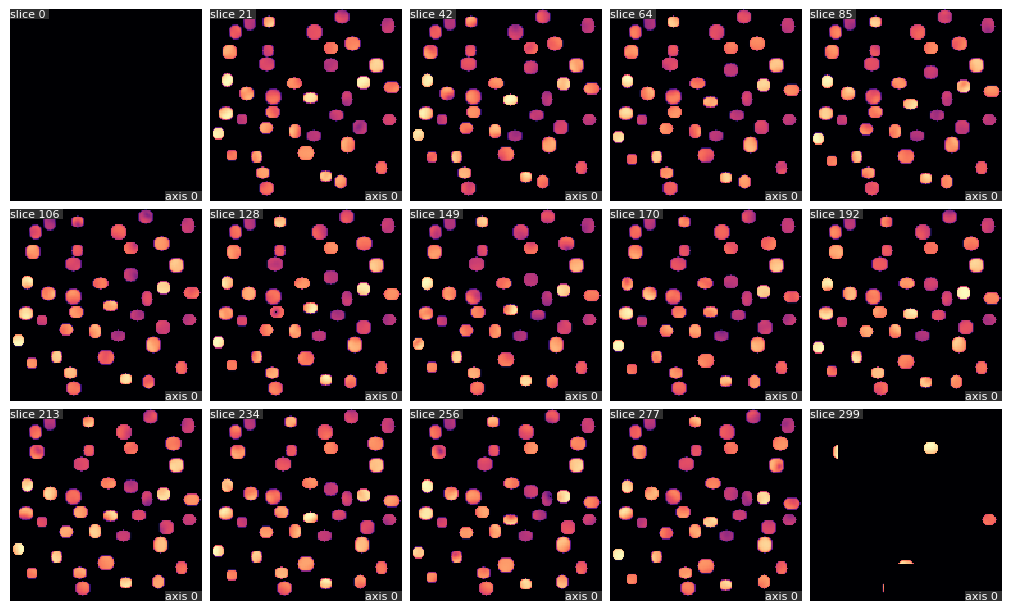

Collection of fiber-like structures

import qim3d

# Generate synthetic collection of cylindrical structures
volume_collection, labels = qim3d.generate.volume_collection(
    n_volumes = 40,
    collection_shape = (300, 150, 150),
    shape_range = ((280, 10, 10), (290, 15, 15)),
    noise_range = (0.06,0.09),
    rotation_degree_range = (0,5),
    threshold_range = (0.1,0.3),
    gamma_range = (0.10, 0.20),
    shape = "cylinder"
    )

# Visualize the collection
qim3d.viz.volumetric(volume_collection)

# Visualize slices
qim3d.viz.slices_grid(volume_collection, num_slices=15)

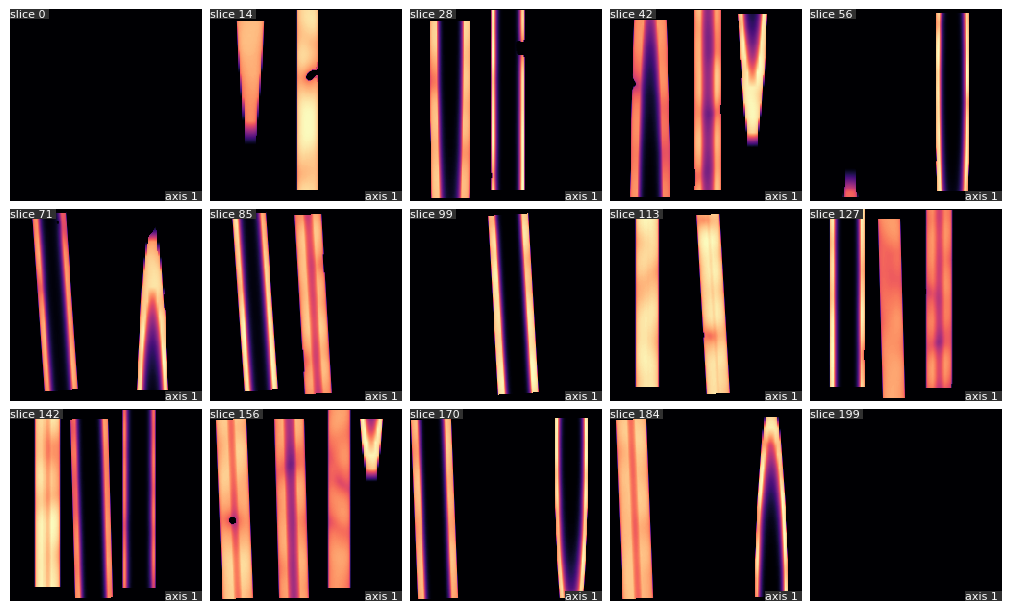

Create a collection of tubular (hollow) structures

import qim3d

# Generate synthetic collection of tubular (hollow) structures
volume_collection, labels = qim3d.generate.volume_collection(
    n_volumes = 10,
    collection_shape = (200, 200, 200),
    shape_range = ((185,35,35), (190,45,45)),
    noise_range = (0.02, 0.03),
    rotation_degree_range = (0,5),
    threshold_range = (0.6, 0.7),
    gamma_range = (0.1, 0.11),
    shape = "tube",
    tube_hole_ratio = 0.15,
    )

# Visualize the collection
qim3d.viz.volumetric(volume_collection)

# Visualize slices
qim3d.viz.slices_grid(volume_collection, num_slices=15, slice_axis=1)

Using predefined volumes

import qim3d

# Generate two unique volumes to be used
volume_1 = qim3d.generate.volume(base_shape = (32,32,32), noise_scale = 0.0)
volume_2 = qim3d.generate.volume(base_shape = (32,32,32), noise_scale = 0.2)

# Generate collection from predefined volumes
volume_collection, labels = qim3d.generate.volume_collection(n_volumes = 30,
                                                             data = [volume_1, volume_2])
# Visualize
qim3d.viz.volumetric(volume_collection)

Source code in qim3d/generate/_aggregators.py

def volume_collection(
    n_volumes: int = 15,
    collection_shape: tuple = (200, 200, 200),
    data: np.ndarray | list[np.ndarray] | None = None,
    positions: list[tuple] = None,
    shape_range: tuple[tuple] = ((40, 40, 40), (60, 60, 60)),
    shape_magnification_range: tuple[float] = (1.0, 1.0),
    noise_type: str = 'perlin',
    noise_range: tuple[float] = (0.02, 0.03),
    rotation_degree_range: tuple[int] = (0, 360),
    rotation_axes: list[tuple] = None,
    gamma_range: tuple[float] = (0.9, 1),
    value_range: tuple[int] = (128, 255),
    threshold_range: tuple[float] = (0.5, 0.55),
    decay_rate_range: tuple[float] = (5, 10),
    shape: str = None,
    tube_hole_ratio: float = 0.5,
    axis: int = 0,
    verbose: bool = False,
    same_seed: bool = False,
    hollow: bool = False,
    seed: int = 0,
    dtype: str = 'uint8',
    return_positions: bool = False,
) -> tuple[np.ndarray, np.ndarray]:
    """
    Generates a synthetic dataset of multiple non-overlapping volumes with ground truth labels.

    This function creates a "collection" volume populated with multiple objects. It uses a collision
    detection algorithm to ensure objects do not overlap. Crucially, it returns a **label mask** where each object is identified by a unique integer ID, making this tool ideal for generating
    training data for **Instance Segmentation** or **Object Detection** models.

    Objects can be generated synthetically (blobs, cylinders, tubes) with randomized properties,
    or you can inject your own pre-existing 3D arrays using the `data` parameter.

    Args:
        n_volumes (int, optional):
            Target number of volumes/objects to place in the collection.
        collection_shape (tuple, optional):
            Dimensions of the final container volume (Z, Y, X).
        data (numpy.ndarray or list[numpy.ndarray], optional):
            Pre-defined 3D volume(s) to place into the collection. If provided, the function picks
            randomly from this list instead of generating new synthetic blobs. Useful for creating
            scenes with specific real-world objects.
        positions (list[tuple], optional):
            List of specific (z, y, x) center coordinates for placement. If `None`, positions are
            chosen randomly. If provided, `n_volumes` must match the length of this list.
        shape_range (tuple[tuple], optional):
            Defines the size variance of generated objects. Format: `((min_z, min_y, min_x), (max_z, max_y, max_x))`.
        shape_magnification_range (tuple[float], optional):
            Range for random uniform scaling factors applied to the object shape.
        noise_type (str, optional):
            Algorithm for synthetic texture generation: `'perlin'`, `'simplex'`, or `'mixed'` (randomly selects per object).
        noise_range (tuple[float], optional):
            Range for the noise scale parameter (roughness).
        rotation_degree_range (tuple[int], optional):
            Range of rotation angles (in degrees) to apply to each object.
        rotation_axes (list[tuple], optional):
            List of axis pairs to rotate around (e.g., `[(0, 1)]` for XY rotation).
        gamma_range (tuple[float], optional):
            Range for gamma correction (contrast).
        value_range (tuple[int], optional):
            Range for the maximum intensity value of the objects.
        threshold_range (tuple[float], optional):
            Range for the threshold used to define the object surface/size.
        decay_rate_range (tuple[float], optional):
            Range for the edge decay rate (fading at boundaries).
        shape (str, optional):
            Force a specific geometric shape: `'cylinder'`, `'tube'`, or `None` (organic blob).
        tube_hole_ratio (float, optional):
            Ratio of the inner hole if `shape='tube'`.
        axis (int, optional):
            Orientation axis (0, 1, 2) if `shape` is defined.
        verbose (bool, optional):
            If `True`, enables detailed logging of placement attempts.
        same_seed (bool, optional):
            If `True`, reuses the same random seed for every object (they will look identical).
        hollow (bool, optional):
            If `True`, applies a hollowing operation to synthetic objects.
        seed (int, optional):
            Global random seed for reproducibility.
        dtype (str, optional):
            Data type of the output arrays.
        return_positions (bool, optional):
            If `True`, the function returns a third element containing the list of successfully placed coordinates.

    Returns:
        volume_collection (numpy.ndarray):
            The 3D volume containing all placed objects.
        labels (numpy.ndarray):
            A 3D integer mask of the same shape, where 0 is background and 1..N are the object IDs.
        positions (list[tuple]):
            (Only if `return_positions=True`) A list of (z, y, x) coordinates for the centers of the placed objects.

    Raises:
        TypeError: If `data` is not a numpy array or list of arrays.
        ValueError: If `data` contains non-3D arrays or volumes larger than `collection_shape`.
        ValueError: If ranges or shapes are incorrectly defined.

    Example:
        ```python
        import qim3d

        # Generate synthetic collection of volumes
        n_volumes = 15
        volume_collection, labels = qim3d.generate.volume_collection(n_volumes=n_volumes)

        # Visualize the collection
        qim3d.viz.volumetric(volume_collection, grid_visible=True)
        ```
        <iframe src="https://platform.qim.dk/k3d/synthetic_collection_default_1.html" width="100%" height="500" frameborder="0"></iframe>

        ```python
        qim3d.viz.slicer(volume_collection)
        ```
        ![synthetic_collection](../../assets/screenshots/synthetic_collection_default.gif)

        ```python
        # Visualize labels
        cmap = qim3d.viz.colormaps.segmentation(n_labels=n_volumes)
        qim3d.viz.slicer(labels, colormap=cmap, max_value=n_volumes)
        ```
        ![synthetic_collection](../../assets/screenshots/synthetic_collection_default_labels.gif)

    Example: Collection of fiber-like structures
        ```python
        import qim3d

        # Generate synthetic collection of cylindrical structures
        volume_collection, labels = qim3d.generate.volume_collection(
            n_volumes = 40,
            collection_shape = (300, 150, 150),
            shape_range = ((280, 10, 10), (290, 15, 15)),
            noise_range = (0.06,0.09),
            rotation_degree_range = (0,5),
            threshold_range = (0.1,0.3),
            gamma_range = (0.10, 0.20),
            shape = "cylinder"
            )

        # Visualize the collection
        qim3d.viz.volumetric(volume_collection)

        ```
        <iframe src="https://platform.qim.dk/k3d/synthetic_collection_cylinder_1.html" width="100%" height="500" frameborder="0"></iframe>

        ```python
        # Visualize slices
        qim3d.viz.slices_grid(volume_collection, num_slices=15)
        ```
        ![synthetic_collection_cylinder](../../assets/screenshots/synthetic_collection_cylinder_slices.png)

    Example: Create a collection of tubular (hollow) structures
        ```python
        import qim3d

        # Generate synthetic collection of tubular (hollow) structures
        volume_collection, labels = qim3d.generate.volume_collection(
            n_volumes = 10,
            collection_shape = (200, 200, 200),
            shape_range = ((185,35,35), (190,45,45)),
            noise_range = (0.02, 0.03),
            rotation_degree_range = (0,5),
            threshold_range = (0.6, 0.7),
            gamma_range = (0.1, 0.11),
            shape = "tube",
            tube_hole_ratio = 0.15,
            )

        # Visualize the collection
        qim3d.viz.volumetric(volume_collection)
        ```
        <iframe src="https://platform.qim.dk/k3d/synthetic_collection_tube_1.html" width="100%" height="500" frameborder="0"></iframe>

        ```python
        # Visualize slices
        qim3d.viz.slices_grid(volume_collection, num_slices=15, slice_axis=1)
        ```
        ![synthetic_collection_tube](../../assets/screenshots/synthetic_collection_tube_slices.png)

    Example: Using predefined volumes
        ```python
        import qim3d

        # Generate two unique volumes to be used
        volume_1 = qim3d.generate.volume(base_shape = (32,32,32), noise_scale = 0.0)
        volume_2 = qim3d.generate.volume(base_shape = (32,32,32), noise_scale = 0.2)

        # Generate collection from predefined volumes
        volume_collection, labels = qim3d.generate.volume_collection(n_volumes = 30,
                                                                     data = [volume_1, volume_2])
        # Visualize
        qim3d.viz.volumetric(volume_collection)
        ```
        <iframe src="https://platform.qim.dk/k3d/synthetic_collection_from_given_volumes.html" width="100%" height="500" frameborder="0"></iframe>

    """

    # Check valid input types
    if data is not None:
        if isinstance(data, np.ndarray):
            data_list = [data]
        elif isinstance(data, list):
            data_list = data
        else:
            msg = '`data` must be a numpy array or list of arrays'
            raise TypeError(msg)
        for idx, arr in enumerate(data_list):
            if not (isinstance(arr, np.ndarray) and arr.ndim == 3):
                msg = f'data[{idx}] must be a 3D numpy array'
                raise ValueError(msg)
    else:
        data_list = None

    if data_list is not None:
        valid = []
        for idx, vol in enumerate(data_list):
            # check each dimension
            if all(v <= c for v, c in zip(vol.shape, collection_shape)):
                valid.append(vol)
            else:
                msg = f'Skipping custom volume {idx} with shape {vol.shape} — larger than collection {collection_shape}'
                log.warning(msg)
        data_list = valid
        # if none remain, we can't build anything
        if not data_list:
            msg = f'No custom volumes fit within collection size {collection_shape}.'
            raise ValueError(msg)

    noise_types = ['pnoise', 'perlin', 'p', 'snoise', 'simplex', 's', 'mixed', 'm']
    if noise_type not in noise_types:
        err = f'noise_type should be one of: {noise_types}'
        raise ValueError(err)

    if not isinstance(collection_shape, tuple) or len(collection_shape) != 3:
        message = 'Shape of collection must be a tuple with three dimensions (z, y, x)'
        raise TypeError(message)

    if len(shape_range[0]) != len(shape_range[1]):
        message = 'Object shapes must be tuples of the same length'
        raise ValueError(message)
    if len(shape_range[0]) != 3 or len(shape_range[1]) != 3 or len(shape_range) != 2:
        message = 'shape_range should be defined as a tuple with two elements, each containing a tuple with three elements.'
        raise ValueError(message)

    if (positions is not None) and (len(positions) != n_volumes):
        message = 'Number of volumes must match number of positions, otherwise set positions = None'
        raise ValueError(message)

    if (positions is not None) and return_positions:
        log.debug('positions are given and thus not returned')
        return_positions = False

    if rotation_axes is None:
        rotation_axes = [(0, 1), (0, 2), (1, 2)]

    if verbose:
        original_log_level = log.getEffectiveLevel()
        log.setLevel('DEBUG')

    # Set seed for random number generator
    rng = np.random.default_rng(seed)

    # Set seed for random number generator for placement
    rng_pos = np.random.default_rng(seed)

    # Initialize the 3D array for the shape
    collection_array = np.zeros(
        (collection_shape[0], collection_shape[1], collection_shape[2]), dtype=dtype
    )
    labels = np.zeros_like(collection_array)

    # Initialize saved positions
    placed_positions = []

    if same_seed:
        seeds = rng.integers(0, 255, size=1).repeat(5000)
    else:
        seeds = rng.integers(low=0, high=255, size=5000)
    nt = rng.random(size=1000)

    # Fill the 3D array with synthetic blobs
    for i in tqdm(range(n_volumes), desc='Objects placed'):
        log.debug(f'\nObject #{i+1}')

        # Sample from blob parameter ranges
        if shape_range[0] == shape_range[1]:
            blob_shape = shape_range[0]
        else:
            blob_shape = tuple(
                rng.integers(low=shape_range[0][i], high=shape_range[1][i])
                for i in range(3)
            )

        magnification = rng.uniform(
            low=shape_magnification_range[0], high=shape_magnification_range[1]
        )

        final_shape = tuple(int(dim * magnification) for dim in blob_shape)
        log.debug(f'- Blob shape: {final_shape}')
        # Check if should keep final_shape separate from base_shape
        # Sample noise scale
        noise_scale = rng.uniform(low=noise_range[0], high=noise_range[1])
        log.debug(f'- Object noise scale: {noise_scale:.4f}')

        gamma = rng.uniform(low=gamma_range[0], high=gamma_range[1])
        log.debug(f'- Gamma correction: {gamma:.3f}')

        threshold = rng.uniform(low=threshold_range[0], high=threshold_range[1])
        log.debug(f'- Threshold: {threshold:.3f}')

        decay_rate = rng.uniform(low=decay_rate_range[0], high=decay_rate_range[1])
        log.debug(f'- Decay rate: {decay_rate:.3f}')

        if value_range[1] > value_range[0]:
            max_value = rng.integers(low=value_range[0], high=value_range[1])
        else:
            max_value = value_range[0]
        log.debug(f'- Max value: {max_value}')

        if noise_type == 'mixed' or noise_type == 'm':
            nti = 'perlin' if nt[i] >= 0.5 else 'simplex'
        else:
            nti = noise_type
        log.debug(f'- Noise type: {nti}')

        log.debug(f'- Seed: {seeds[i]}')

        # Pick volume from the list if provided, otherwise generate synthetic volume
        if data_list is not None:
            choice_i = rng.integers(len(data_list))
            blob = data_list[choice_i].copy()
        else:
            # Generate synthetic volume
            blob = qim3d.generate.volume(
                base_shape=final_shape,
                final_shape=final_shape,
                noise_scale=noise_scale,
                noise_type=nti,
                decay_rate=decay_rate,
                gamma=gamma,
                threshold=threshold,
                max_value=max_value,
                shape=shape,
                tube_hole_ratio=tube_hole_ratio,
                axis=axis,
                order=1,
                dtype=dtype,
                hollow=hollow,
                seed=seeds[i],
            )

        # Rotate volume
        if rotation_degree_range[1] > 0:
            angle = rng.uniform(
                low=rotation_degree_range[0], high=rotation_degree_range[1]
            )  # Sample rotation angle
            axes = rng.choice(rotation_axes)  # Sample the two axes to rotate around
            log.debug(f'- Rotation angle: {angle:.2f} at axes: {axes}')

            blob = scipy.ndimage.rotate(blob, angle, axes, order=1)

        # Place synthetic volume into the collection
        # If positions are specified, place volume at one of the specified positions
        collection_before = collection_array.copy()
        if positions:
            collection_array, placed, positions = specific_placement(
                collection_array, blob, positions.copy()
            )

        # Otherwise, place volume at a random available position
        else:
            collection_array, placed, pos = random_placement(
                collection_array, blob, rng_pos
            )
            if return_positions and placed:
                placed_positions.append(tuple(pos))

            log.debug(f'- Center placement (z,y,x): {pos}')
        # Break if volume could not be placed
        if not placed:
            break

        # Update labels
        new_labels = np.where(collection_array != collection_before, i + 1, 0).astype(
            labels.dtype
        )
        labels += new_labels

    if not placed:
        # Log error if not all n_volumes could be placed (this line of code has to be here, otherwise it will interfere with tqdm progress bar)
        log.error(
            f'Object #{i+1} could not be placed in the collection, no space found. Collection contains {i}/{n_volumes} volumes.'
        )
    if verbose:
        log.setLevel(original_log_level)

    if return_positions:
        return collection_array, labels, placed_positions
    else:
        return collection_array, labels

qim3d.generate.background

background(
    background_shape,
    baseline_value=0,
    min_noise_value=0,
    max_noise_value=20,
    generate_method='add',
    apply_method=None,
    seed=0,
    dtype='uint8',
    apply_to=None,
)

Generates a 3D noise field or adds synthetic background noise to an existing volume.

Unlike volume (which creates structures), this function generates unstructured uniform noise. It is useful for simulating:

• Sensor Noise: Electronic noise or grain common in CT/microscopy scans.
• Imaging Artifacts: Low-contrast background variations.
• Data Augmentation: Making training data more robust by adding random interference.

Parameters:

Name	Type	Description	Default
background_shape	tuple	The shape of the noise volume to generate (Z, Y, X).	required
baseline_value	float	The constant base intensity level of the background.	0
min_noise_value	float	The lower bound of the random noise distribution.	0
max_noise_value	float	The upper bound of the random noise distribution.	20
generate_method	str	How to combine the baseline with the noise: 'add', 'subtract', 'multiply', or 'divide'.	'add'
apply_method	str	If apply_to is provided, this defines how the noise is merged with the input volume.	None
seed	int	Random seed for reproducibility.	0
dtype	str	Output data type.	'uint8'
apply_to	ndarray	An existing 3D volume. If provided, the noise is applied directly to this array using apply_method.	None

Returns:

Name	Type	Description
background	ndarray	The noise volume (if apply_to is None) or the modified input volume.

Raises:

Type	Description
ValueError	If apply_method is not one of 'add', 'subtract', 'multiply', or 'divide'.
ValueError	If apply_method is provided without apply_to input volume provided, or vice versa.

Example

import qim3d

# Generate noise volume
background = qim3d.generate.background(
    background_shape = (128, 128, 128),
    baseline_value = 20,
    min_noise_value = 100,
    max_noise_value = 200,
)

qim3d.viz.volumetric(background)

Example

import qim3d

# Generate synthetic collection of volumes
volume_collection, labels = qim3d.generate.volume_collection(num_volumes = 15)

# Apply noise to the synthetic collection
noisy_collection = qim3d.generate.background(
    background_shape = volume_collection.shape,
    min_noise_value = 0,
    max_noise_value = 20,
    generate_method = 'add',
    apply_method = 'add',
    apply_to = volume_collection
)

qim3d.viz.volumetric(noisy_collection)

Example

import qim3d

# Generate synthetic collection of volumes
volume_collection, labels = qim3d.generate.volume_collection(num_volumes = 15)

# Apply noise to the synthetic collection
noisy_collection = qim3d.generate.background(
    background_shape = volume_collection.shape,
    baseline_value = 0,
    min_noise_value = 0,
    max_noise_value = 30,
    generate_method = 'add',
    apply_method = 'divide',
    apply_to = volume_collection
)

qim3d.viz.volumetric(noisy_collection)

qim3d.viz.slices_grid(noisy_collection, num_slices=10, color_bar=True, color_bar_style="large")

Example

import qim3d

# Generate synthetic collection of volumes
volume_collection, labels = qim3d.generate.volume_collection(num_volumes = 15)

# Apply noise to the synthetic collection
noisy_collection = qim3d.generate.background(
    background_shape = (200, 200, 200),
    baseline_value = 100,
    min_noise_value = 0.8,
    max_noise_value = 1.2,
    generate_method = "multiply",
    apply_method = "add",
    apply_to = volume_collection
)

qim3d.viz.slices_grid(noisy_collection, num_slices=10, color_bar=True, color_bar_style="large")

Source code in qim3d/generate/_generators.py

def background(
    background_shape: tuple,
    baseline_value: float = 0,
    min_noise_value: float = 0,
    max_noise_value: float = 20,
    generate_method: str = 'add',
    apply_method: str = None,
    seed: int = 0,
    dtype: str = 'uint8',
    apply_to: np.ndarray = None,
) -> np.ndarray:
    """
    Generates a 3D noise field or adds synthetic background noise to an existing volume.

    Unlike `volume` (which creates structures), this function generates **unstructured uniform noise**.
    It is useful for simulating:

    * **Sensor Noise:** Electronic noise or grain common in CT/microscopy scans.
    * **Imaging Artifacts:** Low-contrast background variations.
    * **Data Augmentation:** Making training data more robust by adding random interference.

    Args:
        background_shape (tuple):
            The shape of the noise volume to generate (Z, Y, X).
        baseline_value (float, optional):
            The constant base intensity level of the background.
        min_noise_value (float, optional):
            The lower bound of the random noise distribution.
        max_noise_value (float, optional):
            The upper bound of the random noise distribution.
        generate_method (str, optional):
            How to combine the baseline with the noise: `'add'`, `'subtract'`, `'multiply'`, or `'divide'`.
        apply_method (str, optional):
            If `apply_to` is provided, this defines how the noise is merged with the input volume.
        seed (int, optional):
            Random seed for reproducibility.
        dtype (str, optional):
            Output data type.
        apply_to (numpy.ndarray, optional):
            An existing 3D volume. If provided, the noise is applied directly to this array
            using `apply_method`.

    Returns:
        background (numpy.ndarray):
            The noise volume (if `apply_to` is None) or the modified input volume.

    Raises:
        ValueError: If `apply_method` is not one of 'add', 'subtract', 'multiply', or 'divide'.
        ValueError: If `apply_method` is provided without `apply_to` input volume provided, or vice versa.

    Example:
        ```python
        import qim3d

        # Generate noise volume
        background = qim3d.generate.background(
            background_shape = (128, 128, 128),
            baseline_value = 20,
            min_noise_value = 100,
            max_noise_value = 200,
        )

        qim3d.viz.volumetric(background)
        ```
        <iframe src="https://platform.qim.dk/k3d/synthetic_noise_background.html" width="100%" height="500" frameborder="0"></iframe>

    Example:
        ```python
        import qim3d

        # Generate synthetic collection of volumes
        volume_collection, labels = qim3d.generate.volume_collection(num_volumes = 15)

        # Apply noise to the synthetic collection
        noisy_collection = qim3d.generate.background(
            background_shape = volume_collection.shape,
            min_noise_value = 0,
            max_noise_value = 20,
            generate_method = 'add',
            apply_method = 'add',
            apply_to = volume_collection
        )

        qim3d.viz.volumetric(noisy_collection)
        ```
        <iframe src="https://platform.qim.dk/k3d/synthetic_noisy_collection_1.html" width="100%" height="500" frameborder="0"></iframe>

    Example:
        ```python
        import qim3d

        # Generate synthetic collection of volumes
        volume_collection, labels = qim3d.generate.volume_collection(num_volumes = 15)

        # Apply noise to the synthetic collection
        noisy_collection = qim3d.generate.background(
            background_shape = volume_collection.shape,
            baseline_value = 0,
            min_noise_value = 0,
            max_noise_value = 30,
            generate_method = 'add',
            apply_method = 'divide',
            apply_to = volume_collection
        )

        qim3d.viz.volumetric(noisy_collection)
        ```
        <iframe src="https://platform.qim.dk/k3d/synthetic_noisy_collection_2.html" width="100%" height="500" frameborder="0"></iframe>
        ```python
        qim3d.viz.slices_grid(noisy_collection, num_slices=10, color_bar=True, color_bar_style="large")
        ```
        ![synthetic_noisy_collection_slices](../../assets/screenshots/synthetic_noisy_collection_slices_2.png)

    Example:
        ```python
        import qim3d

        # Generate synthetic collection of volumes
        volume_collection, labels = qim3d.generate.volume_collection(num_volumes = 15)

        # Apply noise to the synthetic collection
        noisy_collection = qim3d.generate.background(
            background_shape = (200, 200, 200),
            baseline_value = 100,
            min_noise_value = 0.8,
            max_noise_value = 1.2,
            generate_method = "multiply",
            apply_method = "add",
            apply_to = volume_collection
        )

        qim3d.viz.slices_grid(noisy_collection, num_slices=10, color_bar=True, color_bar_style="large")
        ```
        ![synthetic_noisy_collection_slices](../../assets/screenshots/synthetic_noisy_collection_slices_3.png)

    """
    # Ensure dtype is a valid NumPy type
    dtype = np.dtype(dtype)

    # Define supported apply methods
    apply_operations = {
        'add': lambda a, b: a + b,
        'subtract': lambda a, b: a - b,
        'multiply': lambda a, b: a * b,
        'divide': lambda a, b: a / (b + 1e-8),  # Avoid division by zero
    }

    # Check if apply_method is provided without apply_to volume, or vice versa
    if (apply_to is None and apply_method is not None) or (
        apply_to is not None and apply_method is None
    ):
        msg = 'Supply both apply_method and apply_to when applying background to a volume.'
        # Validate apply_method
        raise ValueError(msg)

    # Validate apply_method
    if apply_method is not None and apply_method not in apply_operations:
        msg = f"Invalid apply_method '{apply_method}'. Choose from {list(apply_operations.keys())}."
        raise ValueError(msg)

    # Validate generate_method
    if generate_method not in apply_operations:
        msg = f"Invalid generate_method '{generate_method}'. Choose from {list(apply_operations.keys())}."
        raise ValueError(msg)

    # Check for shape mismatch
    if (apply_to is not None) and (apply_to.shape != background_shape):
        msg = f'Shape of input volume {apply_to.shape} does not match requested background_shape {background_shape}. Using input shape instead.'
        background_shape = apply_to.shape
        log.info(msg)

    # Generate the noise volume
    baseline = np.full(shape=background_shape, fill_value=baseline_value)

    # Start seeded generator
    rng = np.random.default_rng(seed=seed)
    noise = rng.uniform(
        low=float(min_noise_value), high=float(max_noise_value), size=background_shape
    )

    # Return error if multiplying or dividing with 0
    if baseline_value == 0.0 and (
        generate_method == 'multiply' or generate_method == 'divide'
    ):
        msg = f'Selection of baseline_value=0 and generate_method="{generate_method}" will not generate background noise. Either add baseline_value>0 or change generate_method.'
        raise ValueError(msg)

    # Apply method to initial background computation
    background_volume = apply_operations[generate_method](baseline, noise)

    # Warn user if the background noise is constant or none
    if np.min(background_volume) == np.max(background_volume):
        msg = 'Warning: The used settings have generated a background with a uniform value.'
        log.info(msg)

    # Apply method to the target volume if specified
    if apply_to is not None:
        background_volume = apply_operations[apply_method](apply_to, background_volume)

    # Clip value before dtype convertion
    clip_value = (
        np.iinfo(dtype).max if np.issubdtype(dtype, np.integer) else np.finfo(dtype).max
    )
    background_volume = np.clip(background_volume, 0, clip_value).astype(dtype)

    return background_volume
