Input and output

qim3d.io.Downloader

Provides access to the QIM online data repository and manages file downloads.

This utility allows users to easily fetch, download, and load sample datasets for testing, benchmarking, or educational purposes. It automatically handles local caching to avoid repeated downloads of the same file.

The Downloader acts as an interface to the QIM data repository, organizing files into accessible attributes (e.g., downloader.Cowry_Shell.Cowry_DOWNSAMPLED). It also serves as a general-purpose tool to retrieve files from any given URL via the __call__ method.

Attributes:

Name Type Description
folder_name str or PathLike

Dynamic attributes corresponding to folders in the repository (e.g., Coal, Foam, Shell).

Methods:

Name Description
list_files

Displays a catalog of downloadable files available in the repository.
__call__

Downloads a file from a specific URL.

Syntax for downloading and loading a pre-defined file: qim3d.io.Downloader().{folder_name}.{file_name}(load_file=True)

Overview of available data

Below is a table of the available folders and files on the QIM data repository.

Folder name File name File size
Coal CoalBrikett
CoalBrikett_Zoom
CoalBrikettZoom_DOWNSAMPLED		 2.23 GB
3.72 GB
238 MB
Corals Coral_1
Coral_2
Coral2_DOWNSAMPLED
MexCoral		 2.26 GB
2.38 GB
162 MB
2.23 GB
Cowry_Shell Cowry_Shell
Cowry_DOWNSAMPLED		 1.82 GB
116 MB
Crab HerrmitCrab
OkinawaCrab		 2.38 GB
1.86 GB
Deer_Mandible Animal_Mandible
DeerMandible_DOWNSAMPLED
2.79 GB
638 MB
Foam Foam
Foam_DOWNSAMPLED
Foam_2
Foam_2_zoom		 3.72 GB
238 MB
3.72 GB
3.72 GB
Hourglass Hourglass
Hourglass_4X_80kV_Air_9s_1_97um
Hourglass_longexp_rerun		 3.72 GB
1.83 GB
3.72 GB
Kiwi Kiwi 2.86 GB
Loofah Loofah
Loofah_DOWNSAMPLED		 2.23 GB
143 MB
Marine_Gastropods MarineGatropod_1
MarineGastropod1_DOWNSAMPLED
MarineGatropod_2
MarineGastropod2_DOWNSAMPLED		 2.23 GB
143 MB
2.60 GB
166 MB
Mussel ClosedMussel1
ClosedMussel1_DOWNSAMPLED		 2.23 GB
143 MB
Oak_Branch Oak_branch
OakBranch_DOWNSAMPLED		 2.38 GB
152 MB
Okinawa_Forams Okinawa_Foram_1
Okinawa_Foram_2		 1.84 GB
1.84 GB
Physalis Physalis
Physalis_DOWNSAMPLED		 3.72 GB
238 MB
Raspberry Raspberry2
Raspberry2_DOWNSAMPLED		 2.97 GB
190 MB
Rope FibreRope1
FibreRope1_DOWNSAMPLED		 1.82 GB
686 MB
Sea_Urchin SeaUrchin
Cordatum_Shell
Cordatum_Spine		 2.60 GB
1.85 GB
183 MB
Snail Escargot 2.60 GB
Sponge Sponge 1.11 GB
Example

import qim3d

downloader = qim3d.io.Downloader()

# Browse available files
downloader.list_files()

# Download and load a specific sample
data = downloader.Cowry_Shell.Cowry_DOWNSAMPLED(load_file=True)

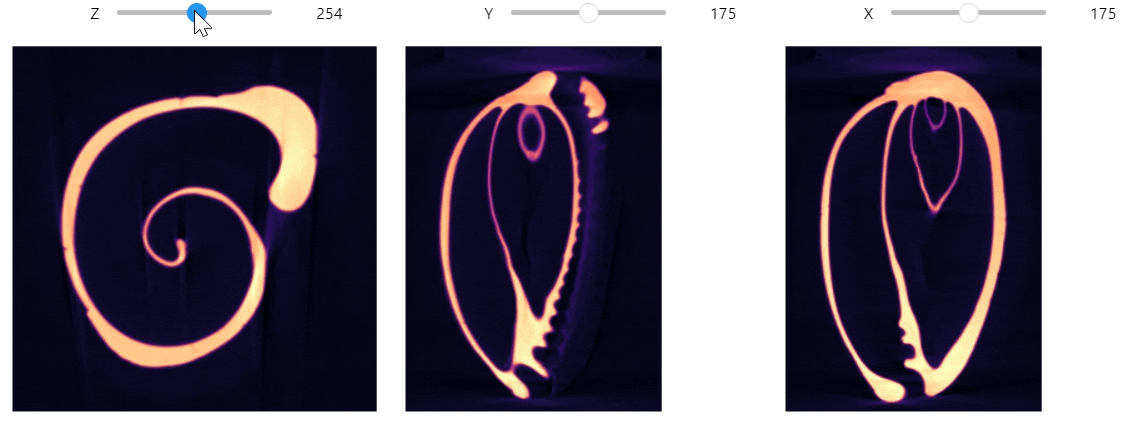

qim3d.viz.slicer_orthogonal(data, colormap="magma")
cowry shell

Source code in qim3d/io/_downloader.py
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
class Downloader:
    """
    Provides access to the QIM online data repository and manages file downloads.

    This utility allows users to easily fetch, download, and load sample datasets for testing,
    benchmarking, or educational purposes. It automatically handles local caching to avoid
    repeated downloads of the same file.

    The `Downloader` acts as an interface to the [QIM data repository](https://data.qim.dk/),
    organizing files into accessible attributes (e.g., `downloader.Cowry_Shell.Cowry_DOWNSAMPLED`). It also
    serves as a general-purpose tool to retrieve files from any given URL via the `__call__` method.

    Attributes:
        folder_name (str or os.PathLike): Dynamic attributes corresponding to folders in the repository (e.g., `Coal`, `Foam`, `Shell`).

    Methods:
        list_files(): Displays a catalog of downloadable files available in the repository.
        __call__(url, ...): Downloads a file from a specific URL.

    Syntax for downloading and loading a pre-defined file:
    `qim3d.io.Downloader().{folder_name}.{file_name}(load_file=True)`

    ??? info "Overview of available data"
        Below is a table of the available folders and files on the [QIM data repository](https://data.qim.dk/).

        Folder name         | File name                                                                                                          | File size
        ------------------- | ------------------------------------------------------------------------------------------------------------------ | ---------------------------------------------
        `Coal`              | `CoalBrikett` <br> `CoalBrikett_Zoom` <br> `CoalBrikettZoom_DOWNSAMPLED`                                           | 2.23 GB <br> 3.72 GB <br> 238 MB
        `Corals`            | `Coral_1` <br> `Coral_2` <br> `Coral2_DOWNSAMPLED` <br> `MexCoral`                                                 | 2.26 GB <br> 2.38 GB <br> 162 MB <br> 2.23 GB
        `Cowry_Shell`       | `Cowry_Shell` <br> `Cowry_DOWNSAMPLED`                                                                             | 1.82 GB <br> 116 MB
        `Crab`              | `HerrmitCrab` <br> `OkinawaCrab`                                                                                   | 2.38 GB <br> 1.86 GB
        `Deer_Mandible`     | `Animal_Mandible` <br> `DeerMandible_DOWNSAMPLED` <br>                                                             | 2.79 GB <br> 638 MB
        `Foam`              | `Foam` <br> `Foam_DOWNSAMPLED` <br> `Foam_2` <br> `Foam_2_zoom`                                                    | 3.72 GB <br> 238 MB <br> 3.72 GB <br> 3.72 GB
        `Hourglass`         | `Hourglass` <br> `Hourglass_4X_80kV_Air_9s_1_97um` <br> `Hourglass_longexp_rerun`                                  | 3.72 GB <br> 1.83 GB <br> 3.72 GB
        `Kiwi`              | `Kiwi`                                                                                                             | 2.86 GB
        `Loofah`            | `Loofah` <br> `Loofah_DOWNSAMPLED`                                                                                 | 2.23 GB <br> 143 MB
        `Marine_Gastropods` | `MarineGatropod_1` <br> `MarineGastropod1_DOWNSAMPLED` <br> `MarineGatropod_2` <br> `MarineGastropod2_DOWNSAMPLED` | 2.23 GB <br> 143 MB <br> 2.60 GB <br> 166 MB
        `Mussel`            | `ClosedMussel1` <br> `ClosedMussel1_DOWNSAMPLED`                                                                   | 2.23 GB <br> 143 MB
        `Oak_Branch`        | `Oak_branch` <br> `OakBranch_DOWNSAMPLED`                                                                          | 2.38 GB <br> 152 MB
        `Okinawa_Forams`    | `Okinawa_Foram_1` <br> `Okinawa_Foram_2`                                                                           | 1.84 GB <br> 1.84 GB
        `Physalis`          | `Physalis` <br> `Physalis_DOWNSAMPLED`                                                                             | 3.72 GB <br> 238 MB
        `Raspberry`         | `Raspberry2` <br> `Raspberry2_DOWNSAMPLED`                                                                         | 2.97 GB <br> 190 MB
        `Rope`              | `FibreRope1` <br> `FibreRope1_DOWNSAMPLED`                                                                         | 1.82 GB <br> 686 MB
        `Sea_Urchin`        | `SeaUrchin` <br> `Cordatum_Shell` <br> `Cordatum_Spine`                                                            | 2.60 GB <br> 1.85 GB <br> 183 MB
        `Snail`             | `Escargot`                                                                                                         | 2.60 GB
        `Sponge`            | `Sponge`                                                                                                           | 1.11 GB

    Example:
        ```python
        import qim3d

        downloader = qim3d.io.Downloader()

        # Browse available files
        downloader.list_files()

        # Download and load a specific sample
        data = downloader.Cowry_Shell.Cowry_DOWNSAMPLED(load_file=True)

        qim3d.viz.slicer_orthogonal(data, colormap="magma")
        ```
        ![cowry shell](../../assets/screenshots/cowry_shell_slicer.gif)
    """

    def __init__(self):
        folders = _extract_names()
        for folder in folders:
            setattr(self, folder, _Myfolder(folder))

    def __call__(
        self,
        url: str,
        output_dir: str = '.',
        load_file: bool = False,
        virtual_stack: bool = True,
        scale: int = 0,
    ) -> object:
        """
        Downloads a file or dataset from a direct URL.

        This function serves as a general-purpose file retriever, capable of fetching data from
        external resources or cloud storage. It supports standard image formats (TIFF, HDF5, NIfTI, DICOM)
        as well as modern chunked formats (Zarr, OME-Zarr).

        For large 3D volumes that may exceed available RAM, this function supports lazy loading
        via the `virtual_stack` parameter. This allows users to work with metadata and open the
        file without immediately reading the full pixel data into memory.

        Args:
            url (str):
                The direct URL of the file to download. Supported formats include:
                regular files (TIFF, HDF5, TXRM/TXM/XRM, NIfTI, PIL, VOL/VGI, DICOM)
                and Zarr/OME-Zarr stores.
            output_dir (str, optional):
                The local directory where the file will be saved. Defaults to the current working directory.
            load_file (bool, optional):
                If `True`, the function will import/read the file into a Python object after downloading.
                If `False`, it only downloads the file to the disk. Default is `False`.
            virtual_stack (bool, optional):
                If `True`, the file is loaded as a virtual stack (lazy loading) if the format supports it.
                This is recommended for large datasets to save memory. Default is `True`.
            scale (int, optional):
                Used only for Zarr/OME-Zarr stores when `load_file` is True. Specifies the resolution
                level (pyramid scale) to load. 0 is full resolution. Default is 0.

        Returns:
            object:
                The downloaded data or file path. The specific return type depends on the parameters:

                * **str**: The local path to the file (if `load_file=False`).
                * **numpy.ndarray**: The full image data loaded into memory (if `load_file=True` and `virtual_stack=False`).
                * **dask.array.Array**: A lazy-loaded virtual stack (if `load_file=True` and `virtual_stack=True`).

        Example:
            ```python
            import qim3d

            downloader = qim3d.io.Downloader()

            # 1. Download a file from a URL without loading it
            path = downloader(
                url="[https://archive.compute.dtu.dk/.../Cowry_DOWNSAMPLED.tif](https://archive.compute.dtu.dk/.../Cowry_DOWNSAMPLED.tif)",
                output_dir=".",
                load_file=False
            )

            # 2. Download and load directly into memory (Numpy array)
            data = downloader(
                url="[https://archive.compute.dtu.dk/.../Cowry_DOWNSAMPLED.tif](https://archive.compute.dtu.dk/.../Cowry_DOWNSAMPLED.tif)",
                load_file=True,
                virtual_stack=False
            )
            ```
        """

        parsed = urlparse(url)
        fname = os.path.basename(parsed.path.rstrip('/'))
        dest = os.path.join(output_dir, fname)

        # --- Zarr / OME-Zarr store ---
        if fname.endswith(('.zarr', '.ome.zarr')):
            if os.path.exists(dest):
                log.warning(f'Zarr store already downloaded:\n{os.path.abspath(dest)}')
            else:
                log.info(f'Downloading Zarr store {fname}\n{url}')
                download(url, output_dir=output_dir)  # return always None
            if load_file:
                # If virtual stack == True --> dask array --> need to call False in load (we don't want call .compute())
                # If virtual stack == False --> numpy array --> need to call True in load (we want call .compute())
                log.info(
                    f"\nLoading scale={scale} from {fname} as {'numpy array' if not virtual_stack else 'dask array'}"
                )
                return qim3d.io.import_ome_zarr(
                    dest, scale=scale, load=not virtual_stack
                )
            return dest

        # --- Regular single file ---
        if os.path.exists(dest):
            log.warning(f'File already downloaded:\n{os.path.abspath(dest)}')
            if load_file:
                return load(path=dest, virtual_stack=virtual_stack)
            return dest
        else:
            log.info(f'Downloading file {fname}\n{url}')
            try:
                total = _get_file_size(url)
            except (HTTPError, URLError):
                total = None

            os.makedirs(output_dir, exist_ok=True)
            with tqdm(
                total=total, unit='B', unit_scale=True, unit_divisor=1024, ncols=80
            ) as pbar:
                try:
                    urllib.request.urlretrieve(
                        url,
                        dest,
                        reporthook=lambda blocknum, bs, total: _update_progress(
                            pbar, blocknum, bs
                        ),
                    )
                except HTTPError as http_err:
                    msg = f'Failed to download {url!r}: server returned HTTP {http_err.code}'
                    raise FileNotFoundError(msg) from http_err
                except URLError as url_err:
                    msg = f'Failed to reach {url!r}: {url_err.reason}'
                    raise ConnectionError(msg) from url_err

        if load_file:
            log.info(f'\nLoading {fname}')
            return load(path=dest, virtual_stack=virtual_stack)

        return dest

    def list_files(self) -> None:
        """
        Displays a catalog of all available datasets in the QIM repository.

        This method prints a formatted list of folder names, file names, and file sizes to the console log.
        It is useful for exploring the inventory of biological and material science scans available for
        download without needing to visit the website.

        The output groups files by their parent folder (e.g., 'Coal', 'Corals', 'Foam').
        """

        url_dl = 'https://archive.compute.dtu.dk/download/public/projects/viscomp_data_repository'

        folders = _extract_names()

        for folder in folders:
            log.info(f'\n{ouf.boxtitle(folder, return_str=True)}')
            files = _extract_names(folder)

            for file in files:
                url = os.path.join(url_dl, folder, file).replace('\\', '/')
                file_size = _get_file_size(url)
                formatted_file = (
                    f"{file[:-len(file.split('.')[-1])-1].replace('%20', '_')}"
                )
                formatted_size = _format_file_size(file_size)
                path_string = f'{folder}.{formatted_file}'

                log.info(f'{path_string:<50}({formatted_size})')

qim3d.io.Downloader.__call__

__call__(
    url,
    output_dir='.',
    load_file=False,
    virtual_stack=True,
    scale=0,
)

Downloads a file or dataset from a direct URL.

This function serves as a general-purpose file retriever, capable of fetching data from external resources or cloud storage. It supports standard image formats (TIFF, HDF5, NIfTI, DICOM) as well as modern chunked formats (Zarr, OME-Zarr).

For large 3D volumes that may exceed available RAM, this function supports lazy loading via the virtual_stack parameter. This allows users to work with metadata and open the file without immediately reading the full pixel data into memory.

Parameters:

Name Type Description Default
url str

The direct URL of the file to download. Supported formats include: regular files (TIFF, HDF5, TXRM/TXM/XRM, NIfTI, PIL, VOL/VGI, DICOM) and Zarr/OME-Zarr stores.

 required
output_dir str

The local directory where the file will be saved. Defaults to the current working directory.

 '.'
load_file bool

If True, the function will import/read the file into a Python object after downloading. If False, it only downloads the file to the disk. Default is False.

 False
virtual_stack bool

If True, the file is loaded as a virtual stack (lazy loading) if the format supports it. This is recommended for large datasets to save memory. Default is True.

 True
scale int

Used only for Zarr/OME-Zarr stores when load_file is True. Specifies the resolution level (pyramid scale) to load. 0 is full resolution. Default is 0.

 0

Returns:

Name Type Description
object object

The downloaded data or file path. The specific return type depends on the parameters:

  • str: The local path to the file (if load_file=False).
  • numpy.ndarray: The full image data loaded into memory (if load_file=True and virtual_stack=False).
  • dask.array.Array: A lazy-loaded virtual stack (if load_file=True and virtual_stack=True).
Example
import qim3d

downloader = qim3d.io.Downloader()

# 1. Download a file from a URL without loading it
path = downloader(
    url="[https://archive.compute.dtu.dk/.../Cowry_DOWNSAMPLED.tif](https://archive.compute.dtu.dk/.../Cowry_DOWNSAMPLED.tif)",
    output_dir=".",
    load_file=False
)

# 2. Download and load directly into memory (Numpy array)
data = downloader(
    url="[https://archive.compute.dtu.dk/.../Cowry_DOWNSAMPLED.tif](https://archive.compute.dtu.dk/.../Cowry_DOWNSAMPLED.tif)",
    load_file=True,
    virtual_stack=False
)
Source code in qim3d/io/_downloader.py
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
def __call__(
    self,
    url: str,
    output_dir: str = '.',
    load_file: bool = False,
    virtual_stack: bool = True,
    scale: int = 0,
) -> object:
    """
    Downloads a file or dataset from a direct URL.

    This function serves as a general-purpose file retriever, capable of fetching data from
    external resources or cloud storage. It supports standard image formats (TIFF, HDF5, NIfTI, DICOM)
    as well as modern chunked formats (Zarr, OME-Zarr).

    For large 3D volumes that may exceed available RAM, this function supports lazy loading
    via the `virtual_stack` parameter. This allows users to work with metadata and open the
    file without immediately reading the full pixel data into memory.

    Args:
        url (str):
            The direct URL of the file to download. Supported formats include:
            regular files (TIFF, HDF5, TXRM/TXM/XRM, NIfTI, PIL, VOL/VGI, DICOM)
            and Zarr/OME-Zarr stores.
        output_dir (str, optional):
            The local directory where the file will be saved. Defaults to the current working directory.
        load_file (bool, optional):
            If `True`, the function will import/read the file into a Python object after downloading.
            If `False`, it only downloads the file to the disk. Default is `False`.
        virtual_stack (bool, optional):
            If `True`, the file is loaded as a virtual stack (lazy loading) if the format supports it.
            This is recommended for large datasets to save memory. Default is `True`.
        scale (int, optional):
            Used only for Zarr/OME-Zarr stores when `load_file` is True. Specifies the resolution
            level (pyramid scale) to load. 0 is full resolution. Default is 0.

    Returns:
        object:
            The downloaded data or file path. The specific return type depends on the parameters:

            * **str**: The local path to the file (if `load_file=False`).
            * **numpy.ndarray**: The full image data loaded into memory (if `load_file=True` and `virtual_stack=False`).
            * **dask.array.Array**: A lazy-loaded virtual stack (if `load_file=True` and `virtual_stack=True`).

    Example:
        ```python
        import qim3d

        downloader = qim3d.io.Downloader()

        # 1. Download a file from a URL without loading it
        path = downloader(
            url="[https://archive.compute.dtu.dk/.../Cowry_DOWNSAMPLED.tif](https://archive.compute.dtu.dk/.../Cowry_DOWNSAMPLED.tif)",
            output_dir=".",
            load_file=False
        )

        # 2. Download and load directly into memory (Numpy array)
        data = downloader(
            url="[https://archive.compute.dtu.dk/.../Cowry_DOWNSAMPLED.tif](https://archive.compute.dtu.dk/.../Cowry_DOWNSAMPLED.tif)",
            load_file=True,
            virtual_stack=False
        )
        ```
    """

    parsed = urlparse(url)
    fname = os.path.basename(parsed.path.rstrip('/'))
    dest = os.path.join(output_dir, fname)

    # --- Zarr / OME-Zarr store ---
    if fname.endswith(('.zarr', '.ome.zarr')):
        if os.path.exists(dest):
            log.warning(f'Zarr store already downloaded:\n{os.path.abspath(dest)}')
        else:
            log.info(f'Downloading Zarr store {fname}\n{url}')
            download(url, output_dir=output_dir)  # return always None
        if load_file:
            # If virtual stack == True --> dask array --> need to call False in load (we don't want call .compute())
            # If virtual stack == False --> numpy array --> need to call True in load (we want call .compute())
            log.info(
                f"\nLoading scale={scale} from {fname} as {'numpy array' if not virtual_stack else 'dask array'}"
            )
            return qim3d.io.import_ome_zarr(
                dest, scale=scale, load=not virtual_stack
            )
        return dest

    # --- Regular single file ---
    if os.path.exists(dest):
        log.warning(f'File already downloaded:\n{os.path.abspath(dest)}')
        if load_file:
            return load(path=dest, virtual_stack=virtual_stack)
        return dest
    else:
        log.info(f'Downloading file {fname}\n{url}')
        try:
            total = _get_file_size(url)
        except (HTTPError, URLError):
            total = None

        os.makedirs(output_dir, exist_ok=True)
        with tqdm(
            total=total, unit='B', unit_scale=True, unit_divisor=1024, ncols=80
        ) as pbar:
            try:
                urllib.request.urlretrieve(
                    url,
                    dest,
                    reporthook=lambda blocknum, bs, total: _update_progress(
                        pbar, blocknum, bs
                    ),
                )
            except HTTPError as http_err:
                msg = f'Failed to download {url!r}: server returned HTTP {http_err.code}'
                raise FileNotFoundError(msg) from http_err
            except URLError as url_err:
                msg = f'Failed to reach {url!r}: {url_err.reason}'
                raise ConnectionError(msg) from url_err

    if load_file:
        log.info(f'\nLoading {fname}')
        return load(path=dest, virtual_stack=virtual_stack)

    return dest

qim3d.io.Downloader.list_files

list_files()

Displays a catalog of all available datasets in the QIM repository.

This method prints a formatted list of folder names, file names, and file sizes to the console log. It is useful for exploring the inventory of biological and material science scans available for download without needing to visit the website.

The output groups files by their parent folder (e.g., 'Coal', 'Corals', 'Foam').

Source code in qim3d/io/_downloader.py
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
def list_files(self) -> None:
    """
    Displays a catalog of all available datasets in the QIM repository.

    This method prints a formatted list of folder names, file names, and file sizes to the console log.
    It is useful for exploring the inventory of biological and material science scans available for
    download without needing to visit the website.

    The output groups files by their parent folder (e.g., 'Coal', 'Corals', 'Foam').
    """

    url_dl = 'https://archive.compute.dtu.dk/download/public/projects/viscomp_data_repository'

    folders = _extract_names()

    for folder in folders:
        log.info(f'\n{ouf.boxtitle(folder, return_str=True)}')
        files = _extract_names(folder)

        for file in files:
            url = os.path.join(url_dl, folder, file).replace('\\', '/')
            file_size = _get_file_size(url)
            formatted_file = (
                f"{file[:-len(file.split('.')[-1])-1].replace('%20', '_')}"
            )
            formatted_size = _format_file_size(file_size)
            path_string = f'{folder}.{formatted_file}'

            log.info(f'{path_string:<50}({formatted_size})')

qim3d.io.load

load(
    path,
    virtual_stack=False,
    dataset_name=None,
    return_metadata=False,
    contains=None,
    force_load=False,
    dim_order=(2, 1, 0),
    progress_bar=False,
    display_memory_usage=False,
    **kwargs,
)

General-purpose function to load, import, or read 3D data from various file formats.

Automatically identifies the file format based on the extension and uses the appropriate backend to open the file. It supports a wide range of standard bio-imaging and material science formats.

Supported Formats:

  • Images: TIFF (.tif, .tiff), PIL supported formats (.png, .jpg, etc.)
  • Volumes: DICOM (.dcm), NIfTI (.nii, .nii.gz)
  • HDF5-based: HDF5 (.h5), TXRM/TXM/XRM (.txrm, .txm)
  • Raw/Binary: VGI/VOL (.vgi)
  • Cloud/Chunked: Zarr (.zarr)
  • Stacks: Directories containing sequences of 2D images (TIFF or DICOM series).

Memory Management (Virtual Stack):

For datasets that are too large to fit into RAM, use virtual_stack=True. This enables lazy loading (or memory mapping), allowing you to inspect metadata (shape, data type) and slice specific sub-regions of the volume without reading the entire file into memory immediately.

Parameters:

Name Type Description Default
path str or PathLike

The path to the file or directory to load. If a directory is provided, the function attempts to load it as a stack of images (e.g., a DICOM series or TIFF sequence).

 required
virtual_stack bool

If True, enables lazy loading. The data is not read into memory until explicitly accessed. Useful for inspecting large files.

 False
dataset_name str

Used only for HDF5 files containing multiple datasets. Specifies which internal dataset to load.

 None
return_metadata bool

If True, returns a tuple (data, metadata). Currently supported for HDF5, NIfTI, and TXRM/TXM/XRM files.

 False
contains str

Used when loading a directory of files (Stack). Specifies a unique substring that must be present in the filenames (e.g., "slice_"). Identifying files by this string helps avoid loading unrelated files in the same folder.

 None
force_load bool

Safety override. If the file size exceeds available system memory, a MemoryError is raised. Set this to True to convert the error into a warning and attempt loading anyway.

 False
dim_order tuple

Used for .vol files. Defines the dimension order (Z, Y, X).

 (2, 1, 0)
progress_bar bool

If True, displays a progress bar during loading (Linux/POSIX only).

 False
display_memory_usage bool

If True, prints a report of memory usage after loading.

 False
**kwargs Any

Additional arguments passed to the underlying DataLoader class.

 {}

Returns:

Name Type Description
vol ndarray, Virtual Stack Object, or tuple

The loaded data.

The specific type depends on the input parameters and file format:

  • numpy.ndarray: Standard in-memory array (if virtual_stack=False).
  • Virtual Stack Object: If virtual_stack=True, returns a lazy-loading object:
    • numpy.memmap (TIFF, VOL)
    • dask.array.Array (Zarr, TXRM)
    • h5py.Dataset (HDF5)
    • nibabel.arrayproxy.ArrayProxy (NIfTI)
  • tuple: (data, metadata) if return_metadata=True.

Raises:

Type Description
MemoryError

If the file is larger than available RAM and force_load=False.
ValueError

If the file format is not supported or the path is invalid.
Example
import qim3d

# 1. Simple load of a single 3D file
vol = qim3d.io.load("path/to/scan.tif")

# 2. Load a large file lazily (virtual stack) to check shape
vol_lazy = qim3d.io.load("path/to/huge_scan.h5", virtual_stack=True)
print(vol_lazy.shape)

# 3. Load a specific dataset from an HDF5 file
vol = qim3d.io.load("data.h5", dataset_name="reconstruction")
Loading from Tiff stack

Volumes can also be loaded from a series of .tiff files. The stack means that we have one file per slice.

import qim3d

# Generate volume
vol = qim3d.generate.volume(noise_scale = 0.015)

# Save as a .tiff stack
# The paremeter `basename` is used for the prefix of the files.
qim3d.io.save("data_directory", vol, basename="blob-slices", sliced_dim=0)

# Load the volume from the .tiff stack
# Here we use `contains` to check the files that have that string in their names
loaded_vol = qim3d.io.load("data_directory" , contains="blob-slices", progress_bar=True)
Source code in qim3d/io/_loading.py
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
830
831
832
833
834
835
836
837
838
839
840
841
842
843
844
845
846
847
848
849
850
851
852
853
854
855
856
857
858
859
860
861
862
863
864
865
866
867
868
869
870
871
872
873
874
875
876
877
878
879
880
881
882
883
884
885
886
887
888
889
890
891
892
893
894
895
896
897
898
899
900
901
902
903
904
905
906
907
908
909
910
911
912
913
914
def load(
    path: str | os.PathLike,
    virtual_stack: bool = False,
    dataset_name: bool = None,
    return_metadata: bool = False,
    contains: bool = None,
    force_load: bool = False,
    dim_order: tuple = (2, 1, 0),
    progress_bar: bool = False,
    display_memory_usage: bool = False,
    **kwargs,
) -> np.ndarray:
    """
    General-purpose function to load, import, or read 3D data from various file formats.

    Automatically identifies the file format based on the extension and uses the appropriate backend to open the file.
    It supports a wide range of standard bio-imaging and material science formats.

    **Supported Formats:**

    * **Images:** TIFF (`.tif`, `.tiff`), PIL supported formats (`.png`, `.jpg`, etc.)
    * **Volumes:** DICOM (`.dcm`), NIfTI (`.nii`, `.nii.gz`)
    * **HDF5-based:** HDF5 (`.h5`), TXRM/TXM/XRM (`.txrm`, `.txm`)
    * **Raw/Binary:** VGI/VOL (`.vgi`)
    * **Cloud/Chunked:** Zarr (`.zarr`)
    * **Stacks:** Directories containing sequences of 2D images (TIFF or DICOM series).

    **Memory Management (Virtual Stack):**

    For datasets that are too large to fit into RAM, use `virtual_stack=True`. This enables
    **lazy loading** (or memory mapping), allowing you to inspect metadata (shape, data type)
    and slice specific sub-regions of the volume without reading the entire file into memory immediately.

    Args:
        path (str or os.PathLike):
            The path to the file or directory to load. If a directory is provided, the function
            attempts to load it as a stack of images (e.g., a DICOM series or TIFF sequence).
        virtual_stack (bool, optional):
            If `True`, enables lazy loading. The data is not read into memory until explicitly accessed.
            Useful for inspecting large files.
        dataset_name (str, optional):
            Used only for HDF5 files containing multiple datasets. Specifies which internal dataset
            to load.
        return_metadata (bool, optional):
            If `True`, returns a tuple `(data, metadata)`. Currently supported for HDF5, NIfTI,
            and TXRM/TXM/XRM files.
        contains (str, optional):
            Used when loading a directory of files (Stack). Specifies a unique substring that must
            be present in the filenames (e.g., "slice_"). Identifying files by this string helps
            avoid loading unrelated files in the same folder.
        force_load (bool, optional):
            Safety override. If the file size exceeds available system memory, a `MemoryError`
            is raised. Set this to `True` to convert the error into a warning and attempt loading anyway.
        dim_order (tuple, optional):
            Used for `.vol` files. Defines the dimension order (Z, Y, X).
        progress_bar (bool, optional):
            If `True`, displays a progress bar during loading (Linux/POSIX only).
        display_memory_usage (bool, optional):
            If `True`, prints a report of memory usage after loading.
        **kwargs (Any):
            Additional arguments passed to the underlying `DataLoader` class.

    Returns:
        vol (ndarray, Virtual Stack Object, or tuple):
            The loaded data.

            The specific type depends on the input parameters and file format:

            * **numpy.ndarray**: Standard in-memory array (if `virtual_stack=False`).
            * **Virtual Stack Object**: If `virtual_stack=True`, returns a lazy-loading object:
                * `numpy.memmap` (TIFF, VOL)
                * `dask.array.Array` (Zarr, TXRM)
                * `h5py.Dataset` (HDF5)
                * `nibabel.arrayproxy.ArrayProxy` (NIfTI)
            * **tuple**: `(data, metadata)` if `return_metadata=True`.

    Raises:
        MemoryError: If the file is larger than available RAM and `force_load=False`.
        ValueError: If the file format is not supported or the path is invalid.

    Example:
        ```python
        import qim3d

        # 1. Simple load of a single 3D file
        vol = qim3d.io.load("path/to/scan.tif")

        # 2. Load a large file lazily (virtual stack) to check shape
        vol_lazy = qim3d.io.load("path/to/huge_scan.h5", virtual_stack=True)
        print(vol_lazy.shape)

        # 3. Load a specific dataset from an HDF5 file
        vol = qim3d.io.load("data.h5", dataset_name="reconstruction")
        ```

    Example: Loading from Tiff stack
        Volumes can also be loaded from a series of `.tiff` files. The stack means that we have one file per slice.

        ```python
        import qim3d

        # Generate volume
        vol = qim3d.generate.volume(noise_scale = 0.015)

        # Save as a .tiff stack
        # The paremeter `basename` is used for the prefix of the files.
        qim3d.io.save("data_directory", vol, basename="blob-slices", sliced_dim=0)

        # Load the volume from the .tiff stack
        # Here we use `contains` to check the files that have that string in their names
        loaded_vol = qim3d.io.load("data_directory" , contains="blob-slices", progress_bar=True)
        ```
    """

    loader = DataLoader(
        virtual_stack=virtual_stack,
        dataset_name=dataset_name,
        return_metadata=return_metadata,
        contains=contains,
        force_load=force_load,
        dim_order=dim_order,
        **kwargs,
    )

    if progress_bar and os.name == 'posix':
        with FileLoadingProgressBar(path):
            data = loader.load(path)
    else:
        data = loader.load(path)

    def log_memory_info(data: np.ndarray) -> None:
        mem = Memory()
        log.info(
            'Volume using %s of memory\n',
            sizeof(data[0].nbytes if isinstance(data, tuple) else data.nbytes),
        )
        mem.report()

    if return_metadata and not isinstance(data, tuple):
        log.warning('The file format does not contain metadata')

    if not virtual_stack:
        if display_memory_usage:
            log_memory_info(data)
    else:
        # Only log if file type is not a np.ndarray, i.e., it is some kind of memmap object
        if not isinstance(
            type(data[0]) if isinstance(data, tuple) else type(data), np.ndarray
        ):
            log.info('Using virtual stack')
        else:
            log.warning('Virtual stack is not supported for this file format')
            if display_memory_usage:
                log_memory_info(data)

    return data

qim3d.io.save

save(
    path,
    data,
    replace=False,
    compression=False,
    basename=None,
    sliced_dim=0,
    chunk_shape='auto',
    **kwargs,
)

General-purpose function to save, export, or write 3D data to disk.

Automatically detects the desired file format based on the filename extension. Supports saving entire volumes as single files or exporting them as a sequence of 2D slices (stack).

Supported Formats:

  • Images: TIFF (.tif), standard image formats (.png, .jpg, .bmp, etc.)
  • Volumes: TIFF (.tif), NIfTI (.nii, .nii.gz), HDF5 (.h5)
  • Cloud/Chunked: Zarr (.zarr)
  • Medical: DICOM (.dcm) - Saves as a series if a directory is provided.

Parameters:

Name Type Description Default
path str or PathLike

The destination path. Can be a filename (e.g., volume.tif) or a directory (e.g., slices/) if saving a stack.

 required
data ndarray or Array

The 2D or 3D image data to be saved.

 required
replace bool

If True, overwrites the file if it already exists. If False, raises a FileExistsError to prevent accidental data loss.

 False
compression bool

If True, applies lossless compression (e.g., Deflate for HDF5/TIFF) to reduce file size.

 False
basename str

Used when saving a 3D volume as a stack of 2D files. Defines the common prefix for the filenames (e.g., basename="slice" results in slice_000.tif, slice_001.tif).

 None
sliced_dim int

The dimension along which to slice the volume when saving as a stack. Usually 0 (Z-axis).

 0
**kwargs Any

Additional arguments passed to the specific backend saver.

 {}

Raises:

Type Description
FileExistsError

If replace=False and the destination already exists.
ValueError

If the file extension is not supported.
Example
import qim3d
import numpy as np

# Generate sample data
vol = qim3d.generate.volume(noise_scale=0.015)

# 1. Save as a single 3D TIFF file
qim3d.io.save("output_volume.tif", vol)

# 2. Save as an HDF5 file with compression
qim3d.io.save("output_volume.h5", vol, compression=True)
Saving as a Stack of Slices

To save a 3D volume as individual 2D images (e.g., for inspection in standard image viewers), provide a directory path and a basename.

import qim3d

vol = qim3d.generate.volume()

# Save as slice_000.tif, slice_001.tif, etc. inside the 'slices' folder
qim3d.io.save("slices_folder", vol, basename="slice", sliced_dim=0)
Source code in qim3d/io/_saving.py
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
def save(
    path: str | os.PathLike,
    data: np.ndarray,
    replace: bool = False,
    compression: bool = False,
    basename: bool = None,
    sliced_dim: int = 0,
    chunk_shape: str = 'auto',
    **kwargs,
) -> None:
    """
    General-purpose function to save, export, or write 3D data to disk.

    Automatically detects the desired file format based on the filename extension.
    Supports saving entire volumes as single files or exporting them as a sequence
    of 2D slices (stack).

    **Supported Formats:**

    * **Images:** TIFF (`.tif`), standard image formats (`.png`, `.jpg`, `.bmp`, etc.)
    * **Volumes:** TIFF (`.tif`), NIfTI (`.nii`, `.nii.gz`), HDF5 (`.h5`)
    * **Cloud/Chunked:** Zarr (`.zarr`)
    * **Medical:** DICOM (`.dcm`) - *Saves as a series if a directory is provided.*

    Args:
        path (str or os.PathLike):
            The destination path. Can be a filename (e.g., `volume.tif`) or a directory
            (e.g., `slices/`) if saving a stack.
        data (numpy.ndarray or dask.array.Array):
            The 2D or 3D image data to be saved.
        replace (bool, optional):
            If `True`, overwrites the file if it already exists. If `False`, raises a
            `FileExistsError` to prevent accidental data loss.
        compression (bool, optional):
            If `True`, applies lossless compression (e.g., Deflate for HDF5/TIFF) to reduce file size.
        basename (str, optional):
            Used when saving a 3D volume as a stack of 2D files. Defines the common prefix
            for the filenames (e.g., `basename="slice"` results in `slice_000.tif`, `slice_001.tif`).
        sliced_dim (int, optional):
            The dimension along which to slice the volume when saving as a stack.
            Usually `0` (Z-axis).
        **kwargs (Any):
            Additional arguments passed to the specific backend saver.


    Raises:
        FileExistsError: If `replace=False` and the destination already exists.
        ValueError: If the file extension is not supported.

    Example:
        ```python
        import qim3d
        import numpy as np

        # Generate sample data
        vol = qim3d.generate.volume(noise_scale=0.015)

        # 1. Save as a single 3D TIFF file
        qim3d.io.save("output_volume.tif", vol)

        # 2. Save as an HDF5 file with compression
        qim3d.io.save("output_volume.h5", vol, compression=True)
        ```

    Example: Saving as a Stack of Slices
        To save a 3D volume as individual 2D images (e.g., for inspection in standard image viewers),
        provide a directory `path` and a `basename`.

        ```python
        import qim3d

        vol = qim3d.generate.volume()

        # Save as slice_000.tif, slice_001.tif, etc. inside the 'slices' folder
        qim3d.io.save("slices_folder", vol, basename="slice", sliced_dim=0)
        ```
    """

    DataSaver(
        replace=replace,
        compression=compression,
        basename=basename,
        sliced_dim=sliced_dim,
        chunk_shape=chunk_shape,
        **kwargs,
    ).save(path, data)

qim3d.io.export_ome_zarr

export_ome_zarr(
    path,
    data,
    chunk_size=256,
    downsample_rate=2,
    order=1,
    replace=False,
    method='scaleZYXdask_coarsen',
    progress_bar=True,
    progress_bar_repeat_time='auto',
)

Exports 3D data to the OME-Zarr (NGFF) format with multi-scale pyramidal levels.

Generates a Next Generation File Format (NGFF) representation of the input volume. This format creates a multi-resolution pyramid (downsampled copies), allowing for efficient visualization and streaming of large datasets over networks or the cloud.

Key Features:

  • Chunking: Data is divided into small blocks (chunk_size) for efficient random access.
  • Pyramidal Levels: Automatically calculates and generates lower-resolution levels until the dataset fits within a single chunk.
  • Dask Integration: efficiently handles larger-than-memory datasets by processing chunks in parallel.

Parameters:

Name Type Description Default
path str or PathLike

The destination directory path. The directory will be created as a Zarr group. (E.g. "data.zarr").

 required
data ndarray or Array

The 3D image volume to export.

 required
chunk_size int

The size of the chunks (cubes) for storage (e.g., 256 creates 256x256x256 blocks). Smaller chunks improve access time for specific regions but increase file count.

 256
downsample_rate int

The reduction factor between pyramid levels. A rate of 2 means each level is half the size of the previous one.

 2
order int

The interpolation order for downsampling. 0 = Nearest Neighbor (faster) and 1 = Linear.

 1
replace bool

If True, deletes the existing directory at path before writing. If False, raises an error if the directory exists.

 False
method str

The downsampling strategy. "scaleZYXdask_coarsen" uses block averaging (faster, reduces noise). "scaleZYXdask" uses interpolation (slower, potentially sharper).

 'scaleZYXdask_coarsen'
progress_bar bool

If True, displays a progress bar tracking the chunk writing process.

 True
progress_bar_repeat_time str or int

Interval in seconds for updating the progress bar.

 'auto'

Raises:

Type Description
ValueError

If path exists and replace=False.
ValueError

If downsample_rate <= 1.
Example
import qim3d

# Load a sample dataset
downloader = qim3d.io.Downloader()
data = downloader.Snail.Escargot(load_file=True)

# Export to OME-Zarr with 2x downsampling per level
qim3d.io.export_ome_zarr("Escargot.zarr", data, chunk_size=128, downsample_rate=2)
Source code in qim3d/io/_ome_zarr.py
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
def export_ome_zarr(
    path: str | os.PathLike,
    data: np.ndarray | da.core.Array,
    chunk_size: int = 256,
    downsample_rate: int = 2,
    order: int = 1,
    replace: bool = False,
    method: str = 'scaleZYXdask_coarsen',
    progress_bar: bool = True,
    progress_bar_repeat_time: str = 'auto',
) -> None:
    """
    Exports 3D data to the OME-Zarr (NGFF) format with multi-scale pyramidal levels.

    Generates a **Next Generation File Format (NGFF)** representation of the input volume.
    This format creates a multi-resolution pyramid (downsampled copies), allowing for efficient
    visualization and streaming of large datasets over networks or the cloud.

    **Key Features:**

    * **Chunking:** Data is divided into small blocks (`chunk_size`) for efficient random access.
    * **Pyramidal Levels:** Automatically calculates and generates lower-resolution levels
      until the dataset fits within a single chunk.
    * **Dask Integration:** efficiently handles larger-than-memory datasets by processing chunks in parallel.

    Args:
        path (str or os.PathLike):
            The destination directory path. The directory will be created as a Zarr group. (E.g. `"data.zarr"`).
        data (numpy.ndarray or dask.array.Array):
            The 3D image volume to export.
        chunk_size (int, optional):
            The size of the chunks (cubes) for storage (e.g., `256` creates 256x256x256 blocks).
            Smaller chunks improve access time for specific regions but increase file count.
        downsample_rate (int, optional):
            The reduction factor between pyramid levels. A rate of `2` means each level is
            half the size of the previous one.
        order (int, optional):
            The interpolation order for downsampling. `0` = Nearest Neighbor (faster) and `1` = Linear.
        replace (bool, optional):
            If `True`, deletes the existing directory at `path` before writing.
            If `False`, raises an error if the directory exists.
        method (str, optional):
            The downsampling strategy.
            `"scaleZYXdask_coarsen"` uses block averaging (faster, reduces noise).
            `"scaleZYXdask"` uses interpolation (slower, potentially sharper).
        progress_bar (bool, optional):
            If `True`, displays a progress bar tracking the chunk writing process.
        progress_bar_repeat_time (str or int, optional):
            Interval in seconds for updating the progress bar.

    Raises:
        ValueError: If `path` exists and `replace=False`.
        ValueError: If `downsample_rate` <= 1.

    Example:
        ```python
        import qim3d

        # Load a sample dataset
        downloader = qim3d.io.Downloader()
        data = downloader.Snail.Escargot(load_file=True)

        # Export to OME-Zarr with 2x downsampling per level
        qim3d.io.export_ome_zarr("Escargot.zarr", data, chunk_size=128, downsample_rate=2)
        ```
    """

    # Check if directory exists
    if os.path.exists(path):
        if replace:
            shutil.rmtree(path)
        else:
            raise ValueError(
                f'Directory {path} already exists. Use replace=True to overwrite.'
            )

    # Check if downsample_rate is valid
    if downsample_rate <= 1:
        raise ValueError('Downsample rate must be greater than 1.')

    log.info(f'Exporting data to OME-Zarr format at {path}')

    # Get the number of scales
    min_dim = np.max(np.shape(data))
    nscales = math.ceil(math.log(min_dim / chunk_size) / math.log(downsample_rate))
    log.info(f'Number of scales: {nscales + 1}')

    # Create scaler
    scaler = OMEScaler(
        downscale=downsample_rate, max_layer=nscales, method=method, order=order
    )

    # write the image data
    os.mkdir(path)
    store = parse_url(path, mode='w').store
    root = zarr.group(store=store)

    # Check if we want to process using Dask
    if 'dask' in method and not isinstance(data, da.Array):
        log.info('\nConverting input data to Dask array')
        data = da.from_array(data, chunks=(chunk_size, chunk_size, chunk_size))
        log.info(f' - shape...: {data.shape}\n - chunks..: {data.chunksize}\n')

    elif 'dask' in method and isinstance(data, da.Array):
        log.info('\nInput data will be rechunked')
        data = data.rechunk((chunk_size, chunk_size, chunk_size))
        log.info(f' - shape...: {data.shape}\n - chunks..: {data.chunksize}\n')

    log.info('Calculating the multi-scale pyramid')

    # Generate multi-scale pyramid
    mip = scaler.func(data)

    log.info('Writing data to disk')
    kwargs = dict(
        pyramid=mip,
        group=root,
        fmt=CurrentFormat(),
        axes='zyx',
        name=None,
        compute=True,
        storage_options=dict(chunks=(chunk_size, chunk_size, chunk_size)),
    )
    if progress_bar:

        # Get number of chunks for each shape and sum them together
        n_chunks = sum([np.prod(np.ceil(np.array(scaled_data.shape)/chunk_size)) for scaled_data in mip])

        with OmeZarrExportProgressBar(
            path=path, n_chunks=n_chunks, reapeat_time=progress_bar_repeat_time
        ):
            write_multiscale(**kwargs)
    else:
        write_multiscale(**kwargs)

    log.info('\nAll done!')

    return

qim3d.io.import_ome_zarr

import_ome_zarr(path, scale=0, load=True)

Imports or reads image data from an OME-Zarr (NGFF) container.

Allows reading specific resolution levels from a multi-scale dataset. This is particularly useful for previewing large datasets by loading a coarse scale before fetching the full-resolution data.

Parameters:

Name Type Description Default
path str or PathLike

The path to the OME-Zarr file (directory).

 required
scale int or str

The resolution level to load. 0 is the full resolution (finest). Higher integers are progressively lower resolutions. Can also accept 'highest' (alias for 0) or 'lowest' (coarsest available scale).

 0
load bool

If True, reads the data into memory as a numpy.ndarray. If False, returns a dask.array.Array for lazy loading/processing.

 True

Returns:

Name Type Description
vol ndarray or Array

The requested image data.

  • numpy.ndarray: The full image data loaded into memory (if load=True).
  • dask.array.Array: A lazy-loaded Dask array connected to the Zarr store (if load=False).

Raises: ValueError: If the requested scale index exceeds the available levels in the dataset.

Example
import qim3d

# 1. Load the full resolution data into memory
data = qim3d.io.import_ome_zarr("Escargot.zarr", scale=0, load=True)

# 2. Lazy load the lowest resolution (thumbnail/preview)
preview_lazy = qim3d.io.import_ome_zarr("Escargot.zarr", scale='lowest', load=False)
print(preview_lazy.shape)
Source code in qim3d/io/_ome_zarr.py
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
def import_ome_zarr(
    path: str | os.PathLike, scale: int = 0, load: bool = True
) -> np.ndarray:
    """
    Imports or reads image data from an OME-Zarr (NGFF) container.

    Allows reading specific resolution levels from a multi-scale dataset. This is particularly
    useful for previewing large datasets by loading a coarse scale before fetching the full-resolution data.

    Args:
        path (str or os.PathLike):
            The path to the OME-Zarr file (directory).
        scale (int or str, optional):
            The resolution level to load.
            `0` is the full resolution (finest). Higher integers are progressively lower resolutions.
            Can also accept `'highest'` (alias for 0) or `'lowest'` (coarsest available scale).
        load (bool, optional):
            If `True`, reads the data into memory as a `numpy.ndarray`.
            If `False`, returns a `dask.array.Array` for lazy loading/processing.

    Returns:
        vol (numpy.ndarray or dask.array.Array):
            The requested image data.

            * **numpy.ndarray**: The full image data loaded into memory (if `load=True`).
            * **dask.array.Array**: A lazy-loaded Dask array connected to the Zarr store (if `load=False`).
    Raises:
        ValueError: If the requested `scale` index exceeds the available levels in the dataset.

    Example:
        ```python
        import qim3d

        # 1. Load the full resolution data into memory
        data = qim3d.io.import_ome_zarr("Escargot.zarr", scale=0, load=True)

        # 2. Lazy load the lowest resolution (thumbnail/preview)
        preview_lazy = qim3d.io.import_ome_zarr("Escargot.zarr", scale='lowest', load=False)
        print(preview_lazy.shape)
        ```
    """

    # read the image data
    # store = parse_url(path, mode="r").store

    reader = Reader(parse_url(path))
    nodes = list(reader())
    image_node = nodes[0]
    dask_data = image_node.data

    log.info(f'Data contains {len(dask_data)} scales:')
    for i in np.arange(len(dask_data)):
        log.info(f'- Scale {i}: {dask_data[i].shape}')

    if scale == 'highest':
        scale = 0

    if scale == 'lowest':
        scale = len(dask_data) - 1

    if scale >= len(dask_data):
        raise ValueError(
            f'Scale {scale} does not exist in the data. Please choose a scale between 0 and {len(dask_data)-1}.'
        )

    log.info(f'\nLoading scale {scale} with shape {dask_data[scale].shape}')

    if load:
        vol = dask_data[scale].compute()
    else:
        vol = dask_data[scale]

    return vol

qim3d.io.load_mesh

load_mesh(filename)

Imports or loads a 3D surface mesh from a file.

Reads geometry data from standard mesh formats and returns a PyGEL3D Manifold object. This is useful for analyzing surface structures, isosurfaces, or exported models.

Supported Formats:

  • OBJ (.obj) - Wavefront Object
  • PLY (.ply) - Polygon File Format
  • OFF (.off) - Object File Format
  • X3D (.x3d) - Extensible 3D

Parameters:

Name Type Description Default
filename str or PathLike

The path to the mesh file to load.

 required

Returns:

Name Type Description
mesh Manifold or None

A PyGEL3D object containing the mesh geometry (vertices, faces, edges). Returns None if loading fails.
Example
import qim3d

# Load a mesh file
mesh = qim3d.io.load_mesh("path/to/model.obj")

# Check number of vertices
print(len(mesh.vertices()))
Source code in qim3d/io/_loading.py
917
918
919
920
921
922
923
924
925
926
927
928
929
930
931
932
933
934
935
936
937
938
939
940
941
942
943
944
945
946
947
948
949
950
951
952
953
def load_mesh(filename: str) -> hmesh.Manifold:
    """
    Imports or loads a 3D surface mesh from a file.

    Reads geometry data from standard mesh formats and returns a PyGEL3D Manifold object.
    This is useful for analyzing surface structures, isosurfaces, or exported models.

    **Supported Formats:**

    * **OBJ** (`.obj`) - Wavefront Object
    * **PLY** (`.ply`) - Polygon File Format
    * **OFF** (`.off`) - Object File Format
    * **X3D** (`.x3d`) - Extensible 3D

    Args:
        filename (str or os.PathLike):
            The path to the mesh file to load.

    Returns:
        mesh (Manifold or None):
            A PyGEL3D object containing the mesh geometry (vertices, faces, edges).
            Returns `None` if loading fails.

    Example:
        ```python
        import qim3d

        # Load a mesh file
        mesh = qim3d.io.load_mesh("path/to/model.obj")

        # Check number of vertices
        print(len(mesh.vertices()))
        ```
    """
    mesh = hmesh.load(filename)

    return mesh

qim3d.io.save_mesh

save_mesh(filename, mesh)

Exports or saves a 3D surface mesh to a file.

Writes the geometry of a PyGEL3D Manifold object to disk. The output format is determined automatically by the filename extension.

Supported Formats:

  • OBJ (.obj)
  • OFF (.off)
  • X3D (.x3d)

Parameters:

Name Type Description Default
filename str or PathLike

The destination path. The extension determines the format.

 required
mesh Manifold

The mesh object containing the geometry to be saved.

 required
Example
import qim3d

# Generate a volume and extract a mesh (isosurface)
vol = qim3d.generate.volume(noise_scale=0.05)
mesh = qim3d.mesh.from_volume(vol)

# Save the mesh to an OBJ file
qim3d.io.save_mesh("surface.obj", mesh)
Source code in qim3d/io/_saving.py
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
def save_mesh(filename: str, mesh: hmesh.Manifold) -> None:
    """
    Exports or saves a 3D surface mesh to a file.

    Writes the geometry of a PyGEL3D Manifold object to disk. The output format is
    determined automatically by the filename extension.

    **Supported Formats:**

    * **OBJ** (`.obj`)
    * **OFF** (`.off`)
    * **X3D** (`.x3d`)

    Args:
        filename (str or os.PathLike):
            The destination path. The extension determines the format.
        mesh (hmesh.Manifold):
            The mesh object containing the geometry to be saved.

    Example:
        ```python
        import qim3d

        # Generate a volume and extract a mesh (isosurface)
        vol = qim3d.generate.volume(noise_scale=0.05)
        mesh = qim3d.mesh.from_volume(vol)

        # Save the mesh to an OBJ file
        qim3d.io.save_mesh("surface.obj", mesh)
        ```
    """
    # Export the mesh to the specified filename
    hmesh.save(filename, mesh)
