Detection in volumetric data

The qim3d library provides a set of detection methods for volumes.

qim3d.detection.blobs

blobs(
    volume,
    background='dark',
    min_sigma=1,
    max_sigma=50,
    sigma_ratio=1.6,
    threshold=0.5,
    overlap=0.5,
    threshold_rel=None,
    exclude_border=False,
)

Detects spherical objects (blobs) in a 3D volume using the Difference of Gaussian (DoG) method.

This function is essential for particle analysis, cell counting, or void detection. It identifies local maxima in the scale-space of the image to locate blobs of various sizes. In addition to returning the precise coordinates and radii of the detected features, it generates a binary mask where the spherical regions are fully reconstructed.

Parameters:

Name	Type	Description	Default
volume	ndarray	The 3D input volume.	required
background	str	The intensity of the background relative to the objects. 'dark': Use if the background is darker than the objects (detects bright spots). 'bright': Use if the background is lighter than the objects (detects dark spots/pores).	'dark'
min_sigma	float	The minimum standard deviation for the Gaussian kernel. Controls the smallest blob size to detect. Defaults to 1.	1
max_sigma	float	The maximum standard deviation for the Gaussian kernel. Controls the largest blob size to detect. Defaults to 50.	50
sigma_ratio	float	The ratio between the standard deviations of consecutive Gaussian kernels in the scale space. Defaults to 1.6.	1.6
threshold	float	The absolute lower bound for intensity. reduce this value to detect fainter blobs. Defaults to 0.5.	0.5
overlap	float	The maximum fraction of spatial overlap allowed between two blobs. If two blobs overlap by more than this fraction, the smaller one is eliminated. Defaults to 0.5.	0.5
threshold_rel	float or None	Minimum intensity of peaks, calculated as max(image) * threshold_rel. Defaults to None.	None
exclude_border	bool	If True, ignores blobs found near the border of the volume. Defaults to False.	False

Returns:

Name	Type	Description
results	tuple[ndarray, ndarray]	A tuple containing the detection metrics and the resulting segmentation. blobs: An array of shape (N, 4) containing the parameters (z, y, x, radius) for each detected blob. binary_volume: A boolean mask of the same shape as volume, where the detected spherical regions are marked as True.

Example

import qim3d
import qim3d.detection

# Get data
vol = qim3d.examples.cement_128x128x128
vol_blurred = qim3d.filters.gaussian(vol, sigma=2)

# Detect blobs, and get binary_volume
blobs, binary_volume = qim3d.detection.blobs(
    vol_blurred,
    min_sigma=1,
    max_sigma=8,
    threshold=0.001,
    overlap=0.1,
    background="bright"
    )

# Visualize detected blobs
qim3d.viz.circles(blobs, vol, alpha=0.8, color='blue')

# Visualize binary binary_volume
qim3d.viz.slicer(binary_volume)

Source code in qim3d/detection/_common_detection_methods.py

def blobs(
    volume: np.ndarray,
    background: str = 'dark',
    min_sigma: float = 1,
    max_sigma: float = 50,
    sigma_ratio: float = 1.6,
    threshold: float = 0.5,
    overlap: float = 0.5,
    threshold_rel: float = None,
    exclude_border: bool = False,
) -> tuple[np.ndarray, np.ndarray]:
    """
    Detects spherical objects (blobs) in a 3D volume using the Difference of Gaussian (DoG) method.

    This function is essential for particle analysis, cell counting, or void detection. It identifies local maxima in the scale-space of the image to locate blobs of various sizes. In addition to returning the precise coordinates and radii of the detected features, it generates a binary mask where the spherical regions are fully reconstructed.

    Args:
        volume (np.ndarray): The 3D input volume.
        background (str, optional): The intensity of the background relative to the objects.

            * **'dark'**: Use if the background is darker than the objects (detects bright spots).
            * **'bright'**: Use if the background is lighter than the objects (detects dark spots/pores).

        min_sigma (float, optional): The minimum standard deviation for the Gaussian kernel. Controls the smallest blob size to detect. Defaults to 1.
        max_sigma (float, optional): The maximum standard deviation for the Gaussian kernel. Controls the largest blob size to detect. Defaults to 50.
        sigma_ratio (float, optional): The ratio between the standard deviations of consecutive Gaussian kernels in the scale space. Defaults to 1.6.
        threshold (float, optional): The absolute lower bound for intensity. reduce this value to detect fainter blobs. Defaults to 0.5.
        overlap (float, optional): The maximum fraction of spatial overlap allowed between two blobs. If two blobs overlap by more than this fraction, the smaller one is eliminated. Defaults to 0.5.
        threshold_rel (float or None, optional): Minimum intensity of peaks, calculated as `max(image) * threshold_rel`. Defaults to `None`.
        exclude_border (bool, optional): If `True`, ignores blobs found near the border of the volume. Defaults to `False`.

    Returns:
        results (tuple[np.ndarray, np.ndarray]):
            A tuple containing the detection metrics and the resulting segmentation.

            * **blobs**: An array of shape `(N, 4)` containing the parameters `(z, y, x, radius)` for each detected blob.
            * **binary_volume**: A boolean mask of the same shape as `volume`, where the detected spherical regions are marked as `True`.

    Example:
            ```python
            import qim3d
            import qim3d.detection

            # Get data
            vol = qim3d.examples.cement_128x128x128
            vol_blurred = qim3d.filters.gaussian(vol, sigma=2)

            # Detect blobs, and get binary_volume
            blobs, binary_volume = qim3d.detection.blobs(
                vol_blurred,
                min_sigma=1,
                max_sigma=8,
                threshold=0.001,
                overlap=0.1,
                background="bright"
                )

            # Visualize detected blobs
            qim3d.viz.circles(blobs, vol, alpha=0.8, color='blue')
            ```

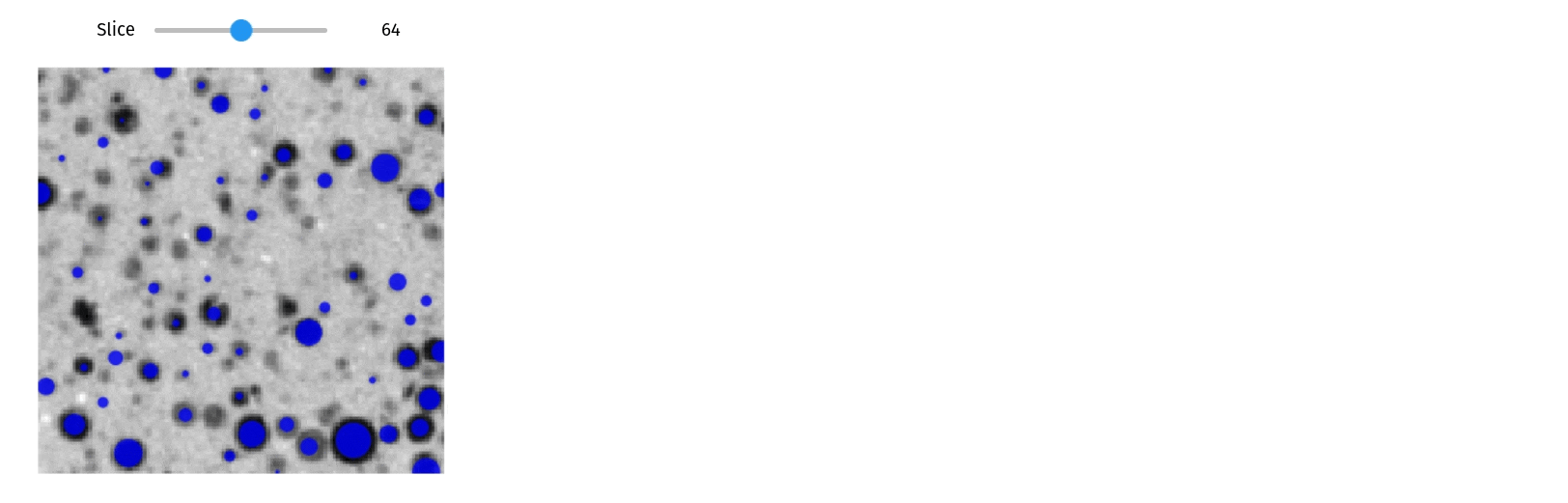

            ![blob detection](../../assets/screenshots/blob_detection.gif)

            ```python
            # Visualize binary binary_volume
            qim3d.viz.slicer(binary_volume)
            ```

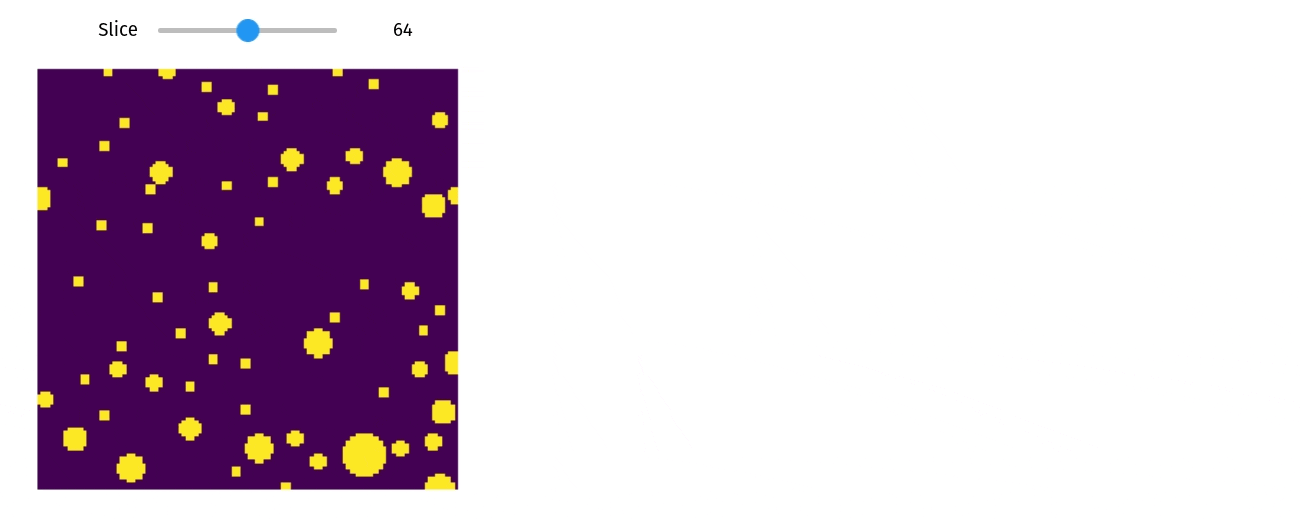

            ![blob detection](../../assets/screenshots/blob_get_mask.gif)
    """
    from skimage.feature import blob_dog

    if background == 'bright':
        log.info('Bright background selected, volume will be inverted.')
        volume = np.invert(volume)

    blobs = blob_dog(
        volume,
        min_sigma=min_sigma,
        max_sigma=max_sigma,
        sigma_ratio=sigma_ratio,
        threshold=threshold,
        overlap=overlap,
        threshold_rel=threshold_rel,
        exclude_border=exclude_border,
    )

    # Change sigma to radius
    blobs[:, 3] = blobs[:, 3] * np.sqrt(3)

    # Create binary mask of detected blobs
    volume_shape = volume.shape
    binary_volume = np.zeros(volume_shape, dtype=bool)

    for z, y, x, radius in blobs:
        # Calculate the bounding box around the blob
        z_start = max(0, int(z - radius))
        z_end = min(volume_shape[0], int(z + radius) + 1)
        y_start = max(0, int(y - radius))
        y_end = min(volume_shape[1], int(y + radius) + 1)
        x_start = max(0, int(x - radius))
        x_end = min(volume_shape[2], int(x + radius) + 1)

        z_indices, y_indices, x_indices = np.indices(
            (z_end - z_start, y_end - y_start, x_end - x_start)
        )
        z_indices += z_start
        y_indices += y_start
        x_indices += x_start

        # Calculate distances from the center of the blob to voxels within the bounding box
        dist = np.sqrt(
            (x_indices - x) ** 2 + (y_indices - y) ** 2 + (z_indices - z) ** 2
        )

        binary_volume[z_start:z_end, y_start:y_end, x_start:x_end][dist <= radius] = (
            True
        )

    return blobs, binary_volume
