Filtering data

The qim3d library provides a set of methods for filtering volumes.

qim3d.filters.Pipeline

Creates an easy way to apply a lot of filters in order. Allows any callable that takes in one argument and returns one variable. Works with lambda or you can use Filter class for better readability. Use keywaord save_output with any filter to save results in the middle of pipeline and use them later.

Example

import qim3d
from qim3d.filters import Pipeline, Filter, Sobel, Threshold
from scipy import ndimage

# Get data
vol = qim3d.examples.bone_128x128x128.astype('int64')

# Show original
qim3d.viz.slices_grid(vol, num_slices=5)

# Create filter pipeline
pipeline = Pipeline(
    Sobel(save_output = True),
    Threshold(600),
)

# Add another filter to the pipeline
pipeline.append(Filter(ndimage.binary_opening))

# Apply the filter pipeline
filtered_vol = pipeline(vol)

# Show middle step
qim3d.viz.slices_grid(pipeline.saved_outputs[0], num_slices=5)

# Show filtered result
qim3d.viz.slices_grid(filtered_vol, num_slices=5)

Source code in qim3d/filters/_common_filter_methods.py

class Pipeline:
    """
    Creates an easy way to apply a lot of filters in order. Allows any callable
    that takes in one argument and returns one variable. Works with ```lambda``` or you can use ```Filter```
    class for better readability.
    Use keywaord ```save_output``` with any filter to save results in the middle of pipeline and use them later.

    Example:
        ```python
        import qim3d
        from qim3d.filters import Pipeline, Filter, Sobel, Threshold
        from scipy import ndimage

        # Get data
        vol = qim3d.examples.bone_128x128x128.astype('int64')

        # Show original
        qim3d.viz.slices_grid(vol, num_slices=5)

        # Create filter pipeline
        pipeline = Pipeline(
            Sobel(save_output = True),
            Threshold(600),
        )

        # Add another filter to the pipeline
        pipeline.append(Filter(ndimage.binary_opening))

        # Apply the filter pipeline
        filtered_vol = pipeline(vol)

        # Show middle step
        qim3d.viz.slices_grid(pipeline.saved_outputs[0], num_slices=5)

        # Show filtered result
        qim3d.viz.slices_grid(filtered_vol, num_slices=5)
        ```

        ![original volume](../../assets/screenshots/pipeline_original.png)

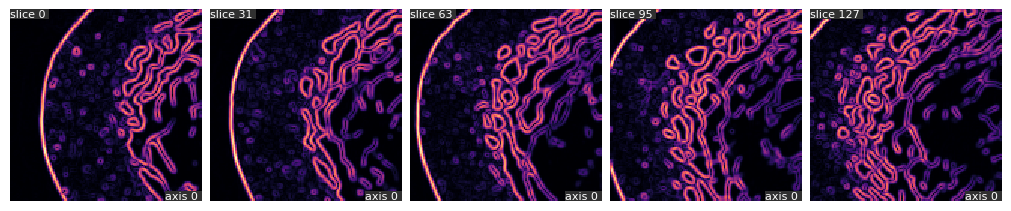

        ![original volume](../../assets/screenshots/pipeline_middlestep.png)

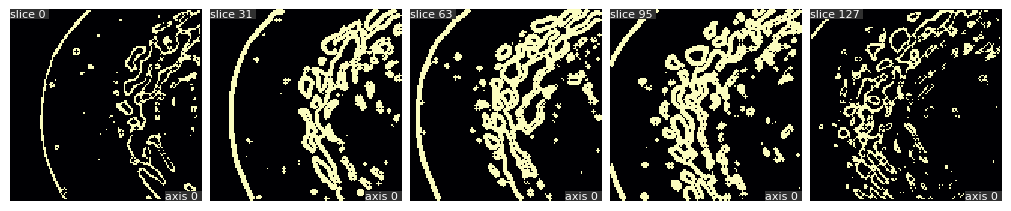

        ![filtered volume](../../assets/screenshots/pipeline_processed.png)

    """

    def __init__(self, *args: Type[FilterBase]):
        """
        Represents a sequence of image filters.

        Args:
            *args: Variable number of filter instances to be applied sequentially.

        """
        self.filters = []
        self.saved_outputs = []

        for fn in args:
            self._add_filter(fn)

    def _add_filter(self, fn: Type[FilterBase]|Callable):
        """
        Adds a filter to the sequence.

        Args:
            name: A string representing the name or identifier of the filter.
            fn: An instance of a FilterBase subclass.

        Raises:
            AssertionError: If `fn` is not an instance of the FilterBase class.

        """
        if not isinstance(fn, FilterBase):
            if not callable(fn):
                raise TypeError(f'Pipeline only accepts callable objects. Your object is of type "{type(fn)}".')
            signature = inspect.signature(fn)
            if signature.parameters != 1:
                raise TypeError(f'Pipeline only accepts callables that take one argument. Yours takes {signature.parameters}.')
        self.filters.append(fn)

    def append(self, fn: FilterBase|Callable):
        """
        Appends a filter to the end of the sequence.

        Args:
            fn (FilterBase): An instance of a FilterBase subclass to be appended.

        Example:
            ```python
            import qim3d
            from qim3d.filters import Pipeline, Maximum, Median

            # Create filter pipeline
            pipeline = Pipeline(
                Maximum(size=3, dask=True),
            )

            # Append a second filter to the pipeline
            pipeline.append(Median(size=5))
            ```

        """
        self._add_filter(fn)

    def __call__(self, input:np.ndarray):
        """
        Applies the sequential filters to the input in order.

        Args:
            input: The input image or volume.

        Returns:
            The filtered image or volume after applying all sequential filters.

        """
        self.saved_outputs = []
        for fn in self.filters:
            input = fn(input)
            if hasattr(fn, 'save_output') and fn.save_output:
                self.saved_outputs.append(input)
        return input

qim3d.filters.Pipeline.append

append(fn)

Appends a filter to the end of the sequence.

Parameters:

Name	Type	Description	Default
fn	FilterBase	An instance of a FilterBase subclass to be appended.	required

Example

import qim3d
from qim3d.filters import Pipeline, Maximum, Median

# Create filter pipeline
pipeline = Pipeline(
    Maximum(size=3, dask=True),
)

# Append a second filter to the pipeline
pipeline.append(Median(size=5))

Source code in qim3d/filters/_common_filter_methods.py

def append(self, fn: FilterBase|Callable):
    """
    Appends a filter to the end of the sequence.

    Args:
        fn (FilterBase): An instance of a FilterBase subclass to be appended.

    Example:
        ```python
        import qim3d
        from qim3d.filters import Pipeline, Maximum, Median

        # Create filter pipeline
        pipeline = Pipeline(
            Maximum(size=3, dask=True),
        )

        # Append a second filter to the pipeline
        pipeline.append(Median(size=5))
        ```

    """
    self._add_filter(fn)

qim3d.filters.gaussian

gaussian(
    volume, sigma, dask=False, chunks='auto', **kwargs
)

Applies a Gaussian filter to the input volume using scipy.ndimage.gaussian_filter or dask_image.ndfilters.gaussian_filter.

Parameters:

Name	Type	Description	Default
volume	ndarray	The input image or volume.	required
sigma	float or sequence of floats	The standard deviations of the Gaussian filter are given for each axis as a sequence, or as a single number, in which case it is equal for all axes.	required
dask	bool	Whether to use Dask for the Gaussian filter.	False
chunks	int or tuple or 'auto'	Defines how to divide the array into blocks when using Dask. Can be an integer, tuple, size in bytes, or "auto" for automatic sizing.	'auto'
**kwargs	Any	Additional keyword arguments for the Gaussian filter.	{}

Returns:

Name	Type	Description
filtered_vol	ndarray	The filtered image or volume.

Example

import qim3d

# Apply filter
vol = qim3d.examples.shell_225x128x128
vol_filtered = qim3d.filters.gaussian(vol, sigma=3, dask=True)

# Show original and filtered volumes
qim3d.viz.slices_grid(vol, n_slices=5, display_figure=True)
qim3d.viz.slices_grid(vol_filtered, n_slices=5, display_figure=True)

Source code in qim3d/filters/_common_filter_methods.py

def gaussian(
    volume: np.ndarray, sigma: float, dask: bool = False, chunks: str = 'auto', **kwargs
) -> np.ndarray:
    """
    Applies a Gaussian filter to the input volume using `scipy.ndimage.gaussian_filter` or `dask_image.ndfilters.gaussian_filter`.

    Args:
        volume (np.ndarray): The input image or volume.
        sigma (float or sequence of floats): The standard deviations of the Gaussian filter are given for each axis as a sequence, or as a single number, in which case it is equal for all axes.
        dask (bool, optional): Whether to use Dask for the Gaussian filter.
        chunks (int or tuple or "'auto'", optional): Defines how to divide the array into blocks when using Dask. Can be an integer, tuple, size in bytes, or "auto" for automatic sizing.
        **kwargs (Any): Additional keyword arguments for the Gaussian filter.

    Returns:
        filtered_vol (np.ndarray): The filtered image or volume.

    Example:
        ```python
        import qim3d

        # Apply filter
        vol = qim3d.examples.shell_225x128x128
        vol_filtered = qim3d.filters.gaussian(vol, sigma=3, dask=True)

        # Show original and filtered volumes
        qim3d.viz.slices_grid(vol, n_slices=5, display_figure=True)
        qim3d.viz.slices_grid(vol_filtered, n_slices=5, display_figure=True)
        ```

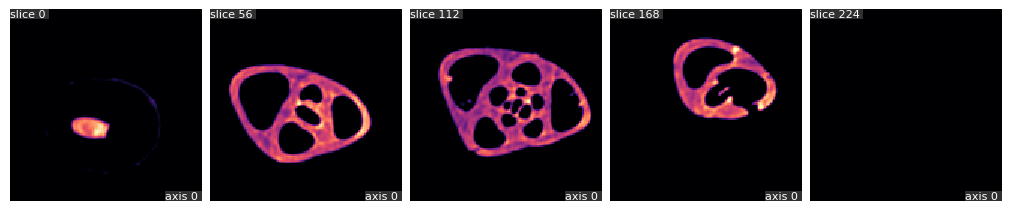

        ![gaussian-filter-before](../../assets/screenshots/gaussian_filter_original.png)

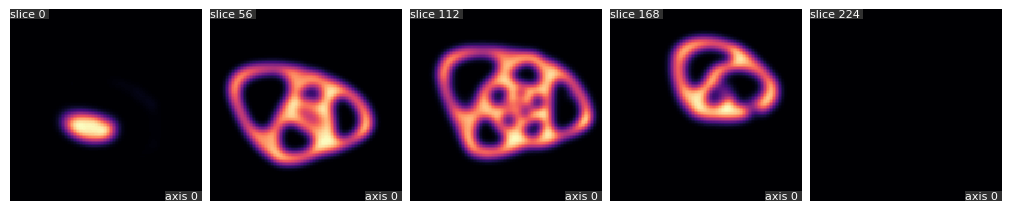

        ![gaussian-filter-after](../../assets/screenshots/gaussian_filter_processed.png)

    """

    if dask:
        if not isinstance(volume, da.Array):
            volume = da.from_array(volume, chunks=chunks)
        dask_volume = dask_ndfilters.gaussian_filter(volume, sigma, **kwargs)
        res = dask_volume.compute()
        return res
    else:
        res = ndimage.gaussian_filter(volume, sigma, **kwargs)
        return res

qim3d.filters.median

median(
    volume,
    size=None,
    footprint=None,
    dask=False,
    chunks='auto',
    **kwargs,
)

Applies a median filter to the input volume using scipy.ndimage.median_filter or dask_image.ndfilters.median_filter.

Parameters:

Name	Type	Description	Default
volume	ndarray	The input image or volume.	required
size	scalar or tuple	Either size or footprint must be defined. size gives the shape that is taken from the input array, at every element position, to define the input to the filter function.	None
footprint	ndarray	Boolean array that specifies (implicitly) a shape, but also which of the elements within this shape will get passed to the filter function.	None
dask	bool	Whether to use Dask for the median filter.	False
chunks	int or tuple or 'auto'	Defines how to divide the array into blocks when using Dask. Can be an integer, tuple, size in bytes, or "auto" for automatic sizing.	'auto'
**kwargs	Any	Additional keyword arguments for the median filter.	{}

Returns:

Name	Type	Description
filtered_vol	ndarray	The filtered image or volume.

Raises:

Type	Description
RuntimeError	If neither size nor footprint is defined

Example

import qim3d

# Generate a noisy volume
vol = qim3d.generate.volume(noise_scale = 0.015)
noisy_vol = qim3d.generate.background(background_shape = vol.shape, max_noise_value = 80, apply_method = 'add', apply_to = vol)

# Apply filter
vol_filtered = qim3d.filters.median(noisy_vol, size=5, dask=True)

# Show original and filtered volumes
qim3d.viz.slices_grid(noisy_vol, n_slices=5, slice_positions = [10, 31, 63, 95, 120], display_figure=True)
qim3d.viz.slices_grid(vol_filtered, n_slices=5, slice_positions = [10, 31, 63, 95, 120], display_figure=True)

Source code in qim3d/filters/_common_filter_methods.py

def median(
    volume: np.ndarray,
    size: float = None,
    footprint: np.ndarray = None,
    dask: bool = False,
    chunks: str = 'auto',
    **kwargs,
) -> np.ndarray:
    """
    Applies a median filter to the input volume using `scipy.ndimage.median_filter` or `dask_image.ndfilters.median_filter`.

    Args:
        volume (np.ndarray): The input image or volume.
        size (scalar or tuple, optional): Either size or footprint must be defined. size gives the shape that is taken from the input array, at every element position, to define the input to the filter function.
        footprint (np.ndarray, optional): Boolean array that specifies (implicitly) a shape, but also which of the elements within this shape will get passed to the filter function.
        dask (bool, optional): Whether to use Dask for the median filter.
        chunks (int or tuple or "'auto'", optional): Defines how to divide the array into blocks when using Dask. Can be an integer, tuple, size in bytes, or "auto" for automatic sizing.
        **kwargs (Any): Additional keyword arguments for the median filter.

    Returns:
        filtered_vol (np.ndarray): The filtered image or volume.

    Raises:
        RuntimeError: If neither size nor footprint is defined

    Example:
        ```python
        import qim3d

        # Generate a noisy volume
        vol = qim3d.generate.volume(noise_scale = 0.015)
        noisy_vol = qim3d.generate.background(background_shape = vol.shape, max_noise_value = 80, apply_method = 'add', apply_to = vol)

        # Apply filter
        vol_filtered = qim3d.filters.median(noisy_vol, size=5, dask=True)

        # Show original and filtered volumes
        qim3d.viz.slices_grid(noisy_vol, n_slices=5, slice_positions = [10, 31, 63, 95, 120], display_figure=True)
        qim3d.viz.slices_grid(vol_filtered, n_slices=5, slice_positions = [10, 31, 63, 95, 120], display_figure=True)
        ```

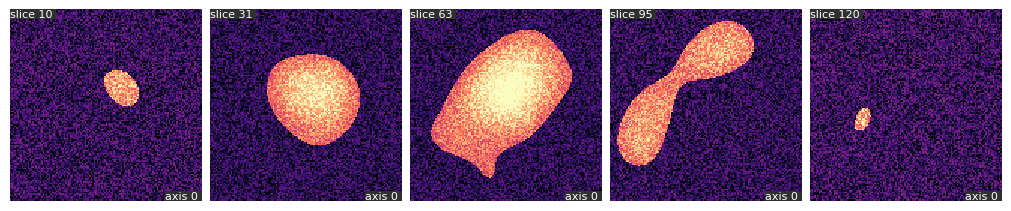

        ![median-filter-before](../../assets/screenshots/median_filter_original.png)

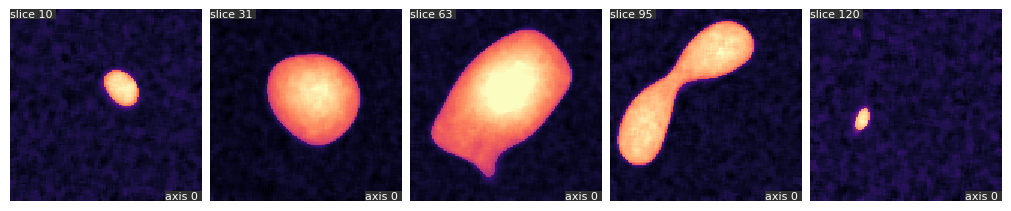

        ![median-filter-after](../../assets/screenshots/median_filter_processed.png)
    """
    if size is None:
        if footprint is None:
            raise RuntimeError('no footprint or filter size provided')

    if dask:
        if not isinstance(volume, da.Array):
            volume = da.from_array(volume, chunks=chunks)
        dask_volume = dask_ndfilters.median_filter(volume, size, footprint, **kwargs)
        res = dask_volume.compute()
        return res
    else:
        res = ndimage.median_filter(volume, size, footprint, **kwargs)
        return res

qim3d.filters.sobel

sobel(vol, dask=False)

Applies scipy.ndimage.sobel filter along all three axes to find egdes. If the output looks like noise, the integers have overflown. Try changing the dtype of your volume.

Parameters:

Name	Type	Description	Default
vol	ndarray	The input image or volume	required
dask	bool	Whether to use Dask for the median filter.	False

Returns:

Name	Type	Description
filtered_vol	ndarray	The filtered image or volume

Example

import qim3d
vol = qim3d.examples.bone_128x128x128.astype('int64')
filtered_vol = qim3d.filters.sobel(vol)
qim3d.viz.slices_grid(vol, num_slices=5)
qim3d.viz.slices_grid(filtered_vol, num_slices=5)

Source code in qim3d/filters/_common_filter_methods.py

def sobel(vol:np.ndarray, dask:bool = False):
    """
    Applies scipy.ndimage.sobel filter along all three axes to find egdes.
    If the output looks like noise, the integers have overflown. Try changing
    the dtype of your volume.

    Args:
        vol (np.ndarray): The input image or volume
        dask (bool, optional): Whether to use Dask for the median filter.

    Returns:
        filtered_vol (np.ndarray): The filtered image or volume

    Example:
        ```python
        import qim3d
        vol = qim3d.examples.bone_128x128x128.astype('int64')
        filtered_vol = qim3d.filters.sobel(vol)
        qim3d.viz.slices_grid(vol, num_slices=5)
        qim3d.viz.slices_grid(filtered_vol, num_slices=5)
        ```

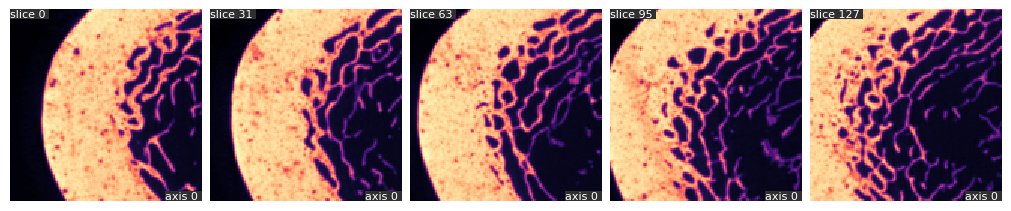

        ![sobel-filter-before](../../assets/screenshots/sobel_filter_original.png)
        ![sobel-filter-after](../../assets/screenshots/pipeline_middlestep.png)
    """
    if dask:
        if not isinstance(vol, da.Array):
            vol = da.from_array()
    sob0 = ndimage.sobel(vol,0)
    sob1 = ndimage.sobel(vol,1)
    if vol.ndim == 3:
        sob2 = ndimage.sobel(vol,2)
        return np.sqrt(sob0**2 + sob1**2 + sob2**2)
    else:
        return np.sqrt(sob0**2 + sob1**2)

qim3d.filters.maximum

maximum(
    volume,
    size=None,
    footprint=None,
    dask=False,
    chunks='auto',
    **kwargs,
)

Applies a maximum filter to the input volume using scipy.ndimage.maximum_filter or dask_image.ndfilters.maximum_filter.

Parameters:

Name	Type	Description	Default
volume	ndarray	The input image or volume.	required
size	scalar or tuple	Either size or footprint must be defined. size gives the shape that is taken from the input array, at every element position, to define the input to the filter function.	None
footprint	ndarray	Boolean array that specifies (implicitly) a shape, but also which of the elements within this shape will get passed to the filter function.	None
dask	bool	Whether to use Dask for the maximum filter.	False
chunks	int or tuple or 'auto'	Defines how to divide the array into blocks when using Dask. Can be an integer, tuple, size in bytes, or "auto" for automatic sizing.	'auto'
**kwargs	Any	Additional keyword arguments for the maximum filter.	{}

Returns:

Name	Type	Description
filtered_vol	ndarray	The filtered image or volume.

Raises:

Type	Description
RuntimeError	If neither size nor footprint is defined

Example

import qim3d

vol = qim3d.examples.fly_150x256x256
vol_filtered = qim3d.filters.maximum(vol, size=6, dask=True)

# Show original and filtered volumes
qim3d.viz.slices_grid(vol, n_slices=5, display_figure=True)
qim3d.viz.slices_grid(vol_filtered, n_slices=5, display_figure=True)

Source code in qim3d/filters/_common_filter_methods.py

def maximum(
    volume: np.ndarray,
    size: float = None,
    footprint: np.ndarray = None,
    dask: bool = False,
    chunks: str = 'auto',
    **kwargs,
) -> np.ndarray:
    """
    Applies a maximum filter to the input volume using `scipy.ndimage.maximum_filter` or `dask_image.ndfilters.maximum_filter`.

    Args:
        volume (np.ndarray): The input image or volume.
        size (scalar or tuple, optional): Either size or footprint must be defined. size gives the shape that is taken from the input array, at every element position, to define the input to the filter function.
        footprint (np.ndarray, optional): Boolean array that specifies (implicitly) a shape, but also which of the elements within this shape will get passed to the filter function.
        dask (bool, optional): Whether to use Dask for the maximum filter.
        chunks (int or tuple or "'auto'", optional): Defines how to divide the array into blocks when using Dask. Can be an integer, tuple, size in bytes, or "auto" for automatic sizing.
        **kwargs (Any): Additional keyword arguments for the maximum filter.

    Returns:
        filtered_vol (np.ndarray): The filtered image or volume.

    Raises:
        RuntimeError: If neither size nor footprint is defined

    Example:
        ```python
        import qim3d

        vol = qim3d.examples.fly_150x256x256
        vol_filtered = qim3d.filters.maximum(vol, size=6, dask=True)

        # Show original and filtered volumes
        qim3d.viz.slices_grid(vol, n_slices=5, display_figure=True)
        qim3d.viz.slices_grid(vol_filtered, n_slices=5, display_figure=True)
        ```

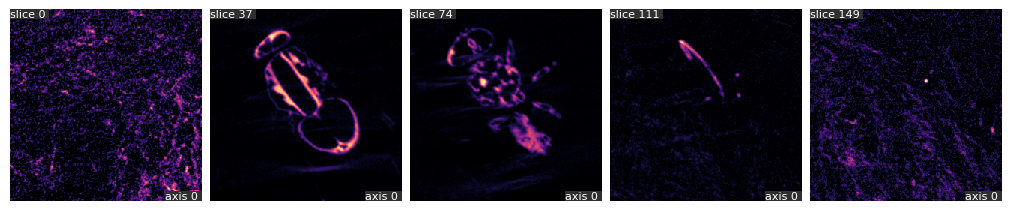

        ![maximum-filter-before](../../assets/screenshots/maximum_filter_original.png)

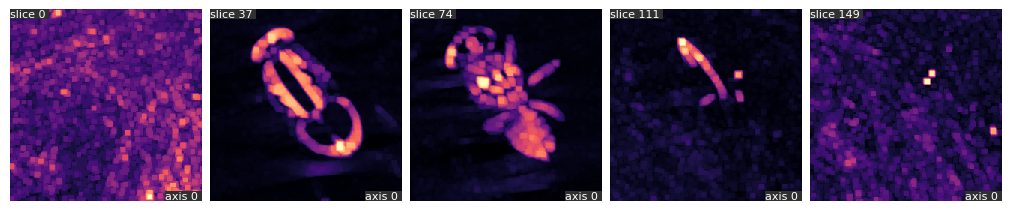

        ![maximum-filter-after](../../assets/screenshots/maximum_filter_processed.png)

    """
    if size is None:
        if footprint is None:
            raise RuntimeError('no footprint or filter size provided')

    if dask:
        if not isinstance(volume, da.Array):
            volume = da.from_array(volume, chunks=chunks)
        dask_volume = dask_ndfilters.maximum_filter(volume, size, footprint, **kwargs)
        res = dask_volume.compute()
        return res
    else:
        res = ndimage.maximum_filter(volume, size, footprint, **kwargs)
        return res

qim3d.filters.minimum

minimum(
    volume,
    size=None,
    footprint=None,
    dask=False,
    chunks='auto',
    **kwargs,
)

Applies a minimum filter to the input volume using scipy.ndimage.minimum_filter or dask_image.ndfilters.minimum_filter.

Parameters:

Name	Type	Description	Default
volume	ndarray	The input image or volume.	required
size	scalar or tuple	Either size or footprint must be defined. size gives the shape that is taken from the input array, at every element position, to define the input to the filter function.	None
footprint	ndarray	Boolean array that specifies (implicitly) a shape, but also which of the elements within this shape will get passed to the filter function.	None
dask	bool	Whether to use Dask for the minimum filter.	False
chunks	int or tuple or 'auto'	Defines how to divide the array into blocks when using Dask. Can be an integer, tuple, size in bytes, or "auto" for automatic sizing.	'auto'
**kwargs	Any	Additional keyword arguments for the minimum filter.	{}

Returns:

Name	Type	Description
filtered_vol	ndarray	The filtered image or volume.

Raises:

Type	Description
RuntimeError	If neither size nor footprint is defined

Example

import qim3d

vol = qim3d.examples.shell_225x128x128
vol_filtered = qim3d.filters.minimum(vol, size=3, dask=True)

qim3d.viz.slices_grid(vol, n_slices=5, slice_positions = [10, 31, 63, 95, 120], display_figure=True)
qim3d.viz.slices_grid(vol_filtered, n_slices=5, slice_positions = [10, 31, 63, 95, 120], display_figure=True)

Source code in qim3d/filters/_common_filter_methods.py

def minimum(
    volume: np.ndarray,
    size: float = None,
    footprint: np.ndarray = None,
    dask: bool = False,
    chunks: str = 'auto',
    **kwargs,
) -> np.ndarray:
    """
    Applies a minimum filter to the input volume using `scipy.ndimage.minimum_filter` or `dask_image.ndfilters.minimum_filter`.

    Args:
        volume (np.ndarray): The input image or volume.
        size (scalar or tuple, optional): Either size or footprint must be defined. size gives the shape that is taken from the input array, at every element position, to define the input to the filter function.
        footprint (np.ndarray, optional): Boolean array that specifies (implicitly) a shape, but also which of the elements within this shape will get passed to the filter function.
        dask (bool, optional): Whether to use Dask for the minimum filter.
        chunks (int or tuple or "'auto'", optional): Defines how to divide the array into blocks when using Dask. Can be an integer, tuple, size in bytes, or "auto" for automatic sizing.
        **kwargs (Any): Additional keyword arguments for the minimum filter.

    Returns:
        filtered_vol (np.ndarray): The filtered image or volume.

    Raises:
        RuntimeError: If neither size nor footprint is defined

    Example:
        ```python
        import qim3d

        vol = qim3d.examples.shell_225x128x128
        vol_filtered = qim3d.filters.minimum(vol, size=3, dask=True)

        qim3d.viz.slices_grid(vol, n_slices=5, slice_positions = [10, 31, 63, 95, 120], display_figure=True)
        qim3d.viz.slices_grid(vol_filtered, n_slices=5, slice_positions = [10, 31, 63, 95, 120], display_figure=True)
        ```

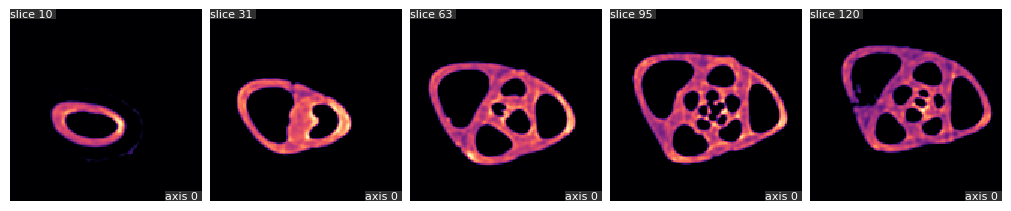

        ![minimum-filter-before](../../assets/screenshots/minimum_filter_original.png)

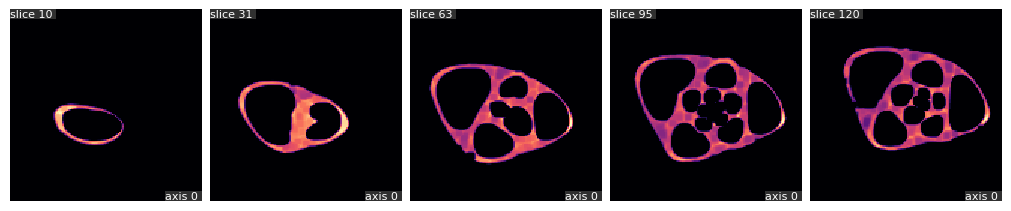

        ![minimum-filter-after](../../assets/screenshots/minimum_filter_processed.png)

    """
    if size is None:
        if footprint is None:
            raise RuntimeError('no footprint or filter size provided')

    if dask:
        if not isinstance(volume, da.Array):
            volume = da.from_array(volume, chunks=chunks)
        dask_volume = dask_ndfilters.minimum_filter(volume, size, footprint, **kwargs)
        res = dask_volume.compute()
        return res
    else:
        res = ndimage.minimum_filter(volume, size, footprint, **kwargs)
        return res

qim3d.filters.tophat

tophat(volume, dask=False, **kwargs)

Remove background from the volume.

Parameters:

Name	Type	Description	Default
volume	ndarray	The volume to remove background from.	required
dask	bool	Whether to use Dask for the tophat filter (not supported, will default to SciPy).	False
**kwargs	Any	Additional keyword arguments. radius (float): The radius of the structuring element (default: 3). background (str): Color of the background, 'dark' or 'bright' (default: 'dark'). If 'bright', volume will be inverted.	{}

Returns:

Name	Type	Description
filtered_vol	ndarray	The volume with background removed.

Example

import qim3d

vol = qim3d.examples.cement_128x128x128
vol_filtered = qim3d.filters.tophat(vol, radius = 7, background = 'bright')

qim3d.viz.slices_grid(vol, n_slices=5, slice_positions = [10, 31, 63, 95, 120], display_figure=True)
qim3d.viz.slices_grid(vol_filtered, n_slices=5, slice_positions = [10, 31, 63, 95, 120], display_figure=True)

Source code in qim3d/filters/_common_filter_methods.py

def tophat(volume: np.ndarray, dask: bool = False, **kwargs):
    """
    Remove background from the volume.

    Args:
        volume (np.ndarray): The volume to remove background from.
        dask (bool, optional): Whether to use Dask for the tophat filter (not supported, will default to SciPy).
        **kwargs (Any): Additional keyword arguments.
            `radius` (float): The radius of the structuring element (default: 3).
            `background` (str): Color of the background, 'dark' or 'bright' (default: 'dark'). If 'bright', volume will be inverted.

    Returns:
        filtered_vol (np.ndarray): The volume with background removed.

    Example:
        ```python
        import qim3d

        vol = qim3d.examples.cement_128x128x128
        vol_filtered = qim3d.filters.tophat(vol, radius = 7, background = 'bright')

        qim3d.viz.slices_grid(vol, n_slices=5, slice_positions = [10, 31, 63, 95, 120], display_figure=True)
        qim3d.viz.slices_grid(vol_filtered, n_slices=5, slice_positions = [10, 31, 63, 95, 120], display_figure=True)
        ```

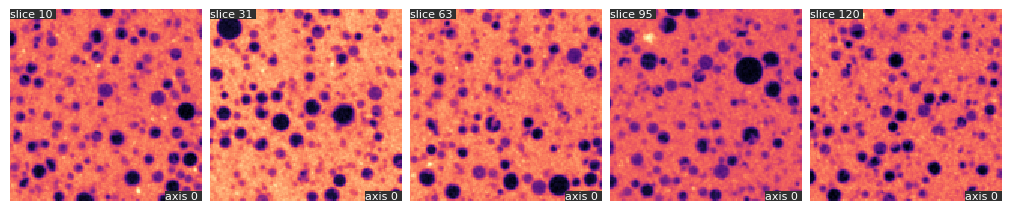

        ![tophat-filter-before](../../assets/screenshots/tophat_filter_original.png)

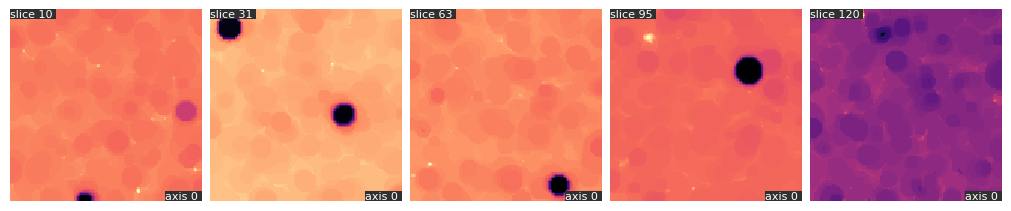

        ![tophat-filter-after](../../assets/screenshots/tophat_filter_processed.png)

    """

    radius = kwargs['radius'] if 'radius' in kwargs else 3
    background = kwargs['background'] if 'background' in kwargs else 'dark'

    if dask:
        log.info('Dask not supported for tophat filter, switching to scipy.')

    if background == 'bright':
        log.info(
            'Bright background selected, volume will be temporarily inverted when applying white_tophat'
        )
        volume = np.invert(volume)

    selem = morphology.ball(radius)
    volume = volume - morphology.white_tophat(volume, selem)

    if background == 'bright':
        volume = np.invert(volume)

    return volume
