Meshes

qim3d.mesh.from_volume

from_volume(
    volume,
    mesh_precision=1.0,
    backend='pyvista',
    method='marching_cubes',
    return_pygel3D=False,
    **kwargs,
)

Converts a 3D binary or grayscale volume into a polygon mesh (isosurface extraction).

This function transforms voxel-based data into a vector-based surface representation (triangular mesh). This process, often called polygonization or tessellation, is a necessary step for 3D printing (exporting to STL), finite element analysis (FEA), or surface-based geometric measurements. It utilizes the volumetric_isocontour function from PyGEL3D to generate a high-quality manifold.

Parameters:

Name	Type	Description	Default
volume	ndarray	A 3D numpy array representing a volume.	required
mesh_precision	float	Scaling factor for adjusting the resolution of the mesh. Default is 1.0 (no scaling).	1.0
backend	str	What python package is used to compute mesh from volume. It is either 'pyvista' or 'pygel'. Default is 'pyvista'	'pyvista'
method	str	Only applies if ˚backend = pyvista˚. What method is used to compute mesh from volume. It can be either 'marching_cubes' or 'flying_edges'. Default is 'marching_cubes	'marching_cubes'
return_pygel3D	bool	If set to True, returns pygel3d.hmesh.Manifold. If False, returns qim3d.mesh.SurfaceMesh. Default is False.	False
**kwargs	any	Additional arguments to pass to the Pygel3D volumetric_isocontour function.	{}

Raises:

Type	Description
ValueError	If the input is not 3D, is empty, or if mesh_precision is outside the (0, 1] range.

Returns:

Name	Type	Description
mesh	Manifold	The generated mesh object containing vertices, edges, and faces.

Example

Convert a 3D numpy array to a Pygel3D mesh object:

import qim3d

# Generate a 3D blob
synthetic_blob = qim3d.generate.volume()

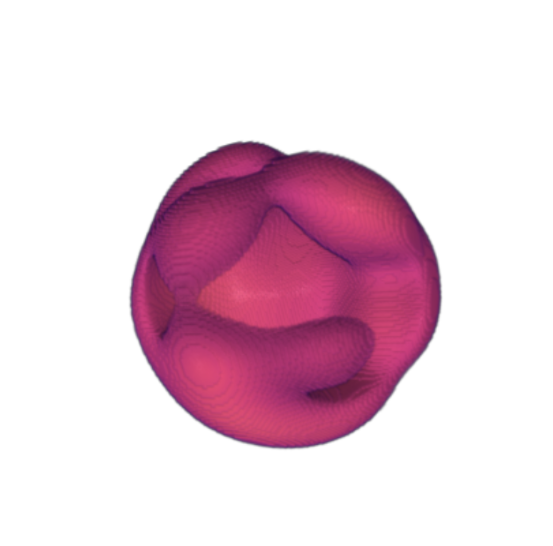

# Visualize the generated blob
qim3d.viz.volumetric(synthetic_blob)

# Convert the 3D numpy array to a Pygel3D mesh object
mesh = qim3d.mesh.from_volume(synthetic_blob, mesh_precision=0.5)

# Visualize the generated mesh
qim3d.viz.mesh(mesh)

Source code in qim3d/mesh/_common_mesh_methods.py

def from_volume(
    volume: np.ndarray,
    mesh_precision: float = 1.0,
    backend:str = 'pyvista',
    method:str = 'marching_cubes',
    return_pygel3D:bool = False,
    **kwargs: any
) -> SurfaceMesh | hmesh.Manifold:
    """
    Converts a 3D binary or grayscale volume into a polygon mesh (isosurface extraction).

    This function transforms voxel-based data into a vector-based surface representation (triangular mesh). This process, often called polygonization or tessellation, is a necessary step for 3D printing (exporting to STL), finite element analysis (FEA), or surface-based geometric measurements. It utilizes the [`volumetric_isocontour`](https://www2.compute.dtu.dk/projects/GEL/PyGEL/pygel3d/hmesh.html#volumetric_isocontour) function from PyGEL3D to generate a high-quality manifold.

    Args:
        volume (np.ndarray): A 3D numpy array representing a volume.
        mesh_precision (float, optional): Scaling factor for adjusting the resolution of the mesh.
                                          Default is 1.0 (no scaling).
        backend (str, optional): What python package is used to compute mesh from volume.
            It is either 'pyvista' or 'pygel'. Default is 'pyvista'
        method (str, optional): Only applies if ˚backend = pyvista˚. What method is used to compute mesh from volume.
            It can be either 'marching_cubes' or 'flying_edges'. Default is 'marching_cubes
        return_pygel3D (bool, optional): If set to True, returns pygel3d.hmesh.Manifold. If False, returns qim3d.mesh.SurfaceMesh.
            Default is False.
        **kwargs: Additional arguments to pass to the Pygel3D volumetric_isocontour function.

    Raises:
        ValueError: If the input is not 3D, is empty, or if `mesh_precision` is outside the (0, 1] range.

    Returns:
        mesh (hmesh.Manifold):
            The generated mesh object containing vertices, edges, and faces.

    Example:
        Convert a 3D numpy array to a Pygel3D mesh object:
        ```python
        import qim3d

        # Generate a 3D blob
        synthetic_blob = qim3d.generate.volume()

        # Visualize the generated blob
        qim3d.viz.volumetric(synthetic_blob)
        ```
        ![pygel3d_visualization_vol](../../assets/screenshots/viz-pygel_mesh_vol.png){width='300', length='200'}

        ```python
        # Convert the 3D numpy array to a Pygel3D mesh object
        mesh = qim3d.mesh.from_volume(synthetic_blob, mesh_precision=0.5)

        # Visualize the generated mesh
        qim3d.viz.mesh(mesh)
        ```
        ![pygel3d_visualization_mesh](../../assets/screenshots/viz-pygel_mesh.png){width='300', length='200'}
    """

    if volume.ndim != 3:
        msg = 'The input volume must be a 3D numpy array.'
        raise ValueError(msg)

    if volume.size == 0:
        msg = 'The input volume must not be empty.'
        raise ValueError(msg)

    if not (0 < mesh_precision <= 1):
        msg = 'The mesh precision must be between 0 and 1.'
        raise ValueError(msg)

    if backend not in ('pyvista', 'pygel'):
        msg = f"Backend has to be either 'pyvista' or 'pygel'. Yours is {backend}"
        raise ValueError(msg)

    # Apply scaling to adjust mesh resolution
    volume = scipy.ndimage.zoom(volume, zoom=mesh_precision, order=0)

    if backend == 'pyvista':
        grid = pv.ImageData(dimensions=volume.shape)
        mesh = grid.contour([1], volume.flatten(order="F"), method=method)

    elif backend == 'pygel':
        mesh = hmesh.volumetric_isocontour(volume, **kwargs)
        if return_pygel3D:
            return mesh

    return SurfaceMesh(mesh)
